Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

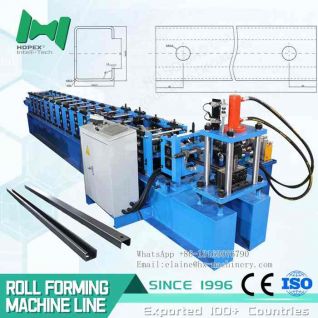

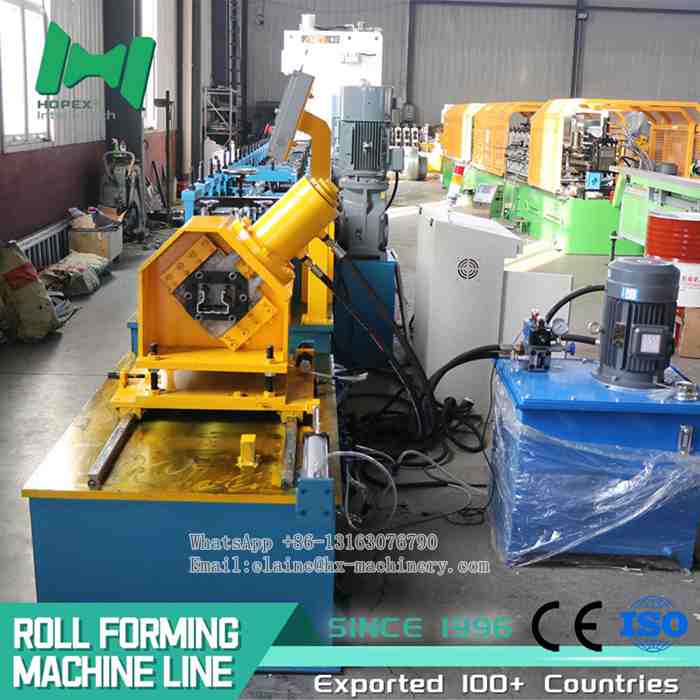

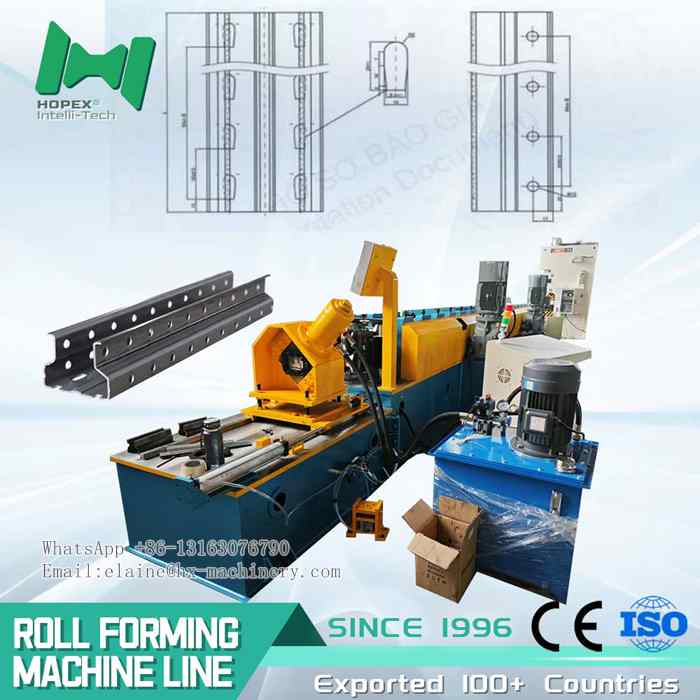

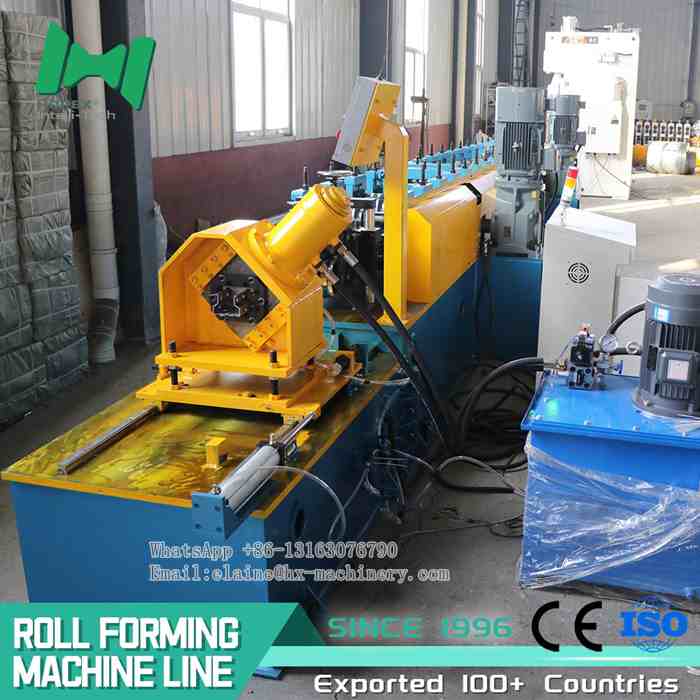

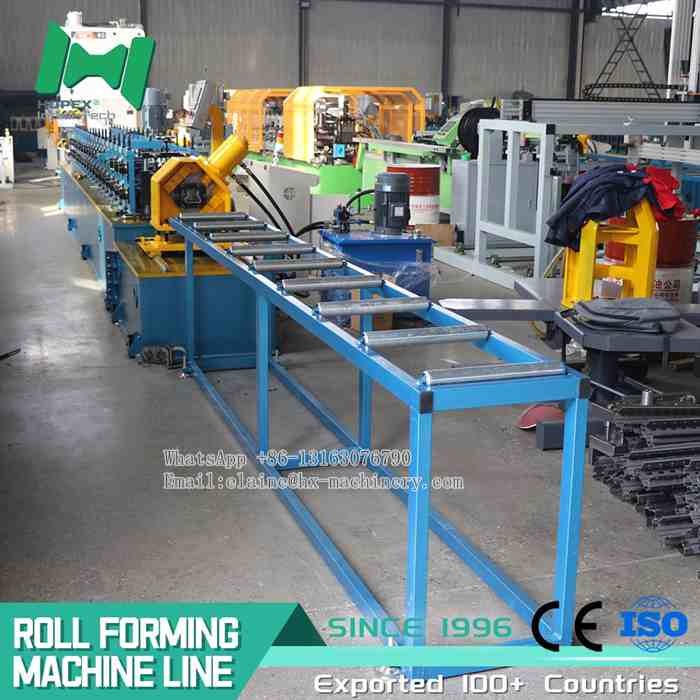

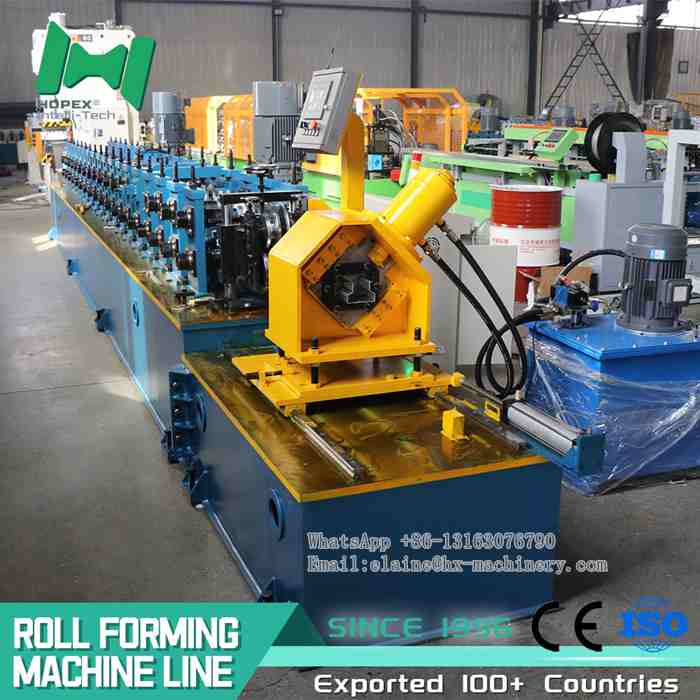

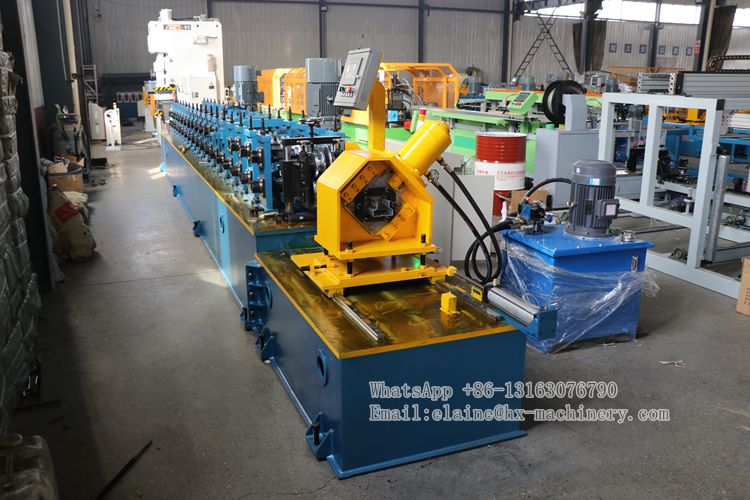

HOPEX upright roll forming machine
Specialized in shelf component production, HOPEX upright roll forming machine boast excellent precision and productivity. With advanced transmission and servo control technology, they realize high-speed and accurate processing, while the wear-resistant parts extend service life. Easy to operate and maintain, the equipment is adaptable to diverse shelf production demands, providing reliable and cost-effective solutions for warehousing storage equipment manufacturing.
Contact us for a quote on cable tray machines！

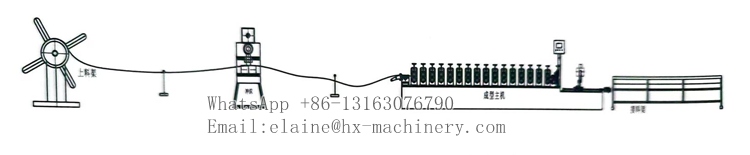

The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

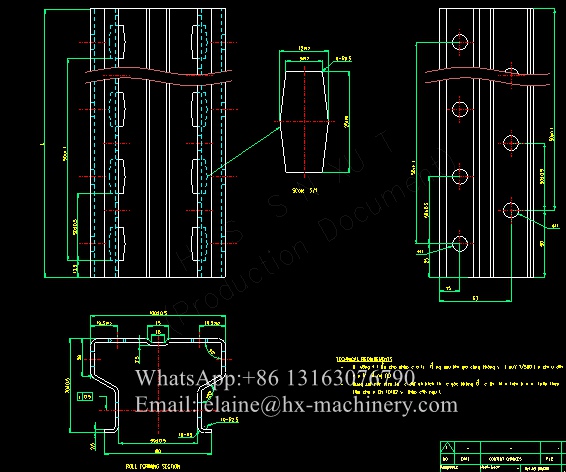

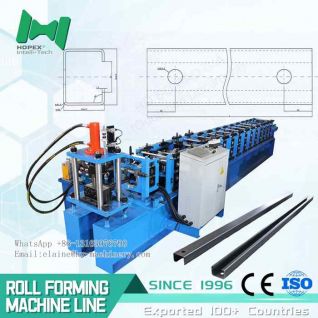

Picture of product profile drawing
HOPEX upright roll forming machine for Trough Trays Technical parameter
| Uncoiling | Electric uncoiling (3-ton load capacity) with 5-roller leveling and feeding |
| Punching | Equipped with Jiangsu Yangli 80-ton pneumatic punch press, servo feeding for punching (die material: DC53; die type: replaceable insert) |

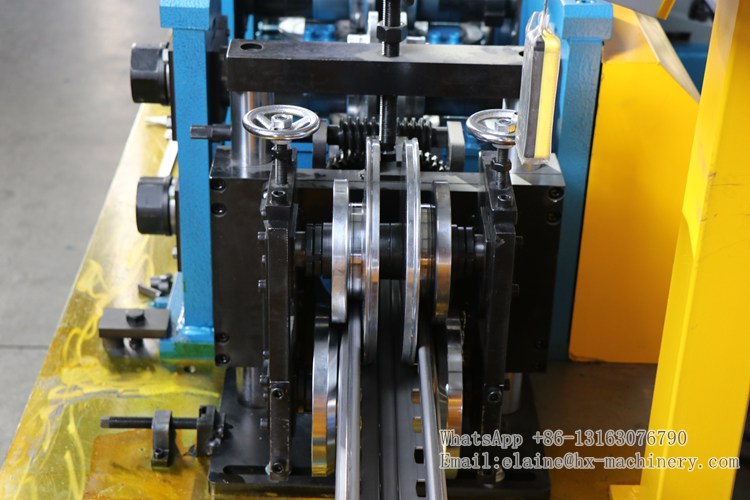

| Forming Main Machine | 70 shaft × 18-pass forming |
| Cutting | Digital hole cutting or pneumatic pinhole cutting; hydraulic station power: 7.5kW |
| Production speed | 18-20 meters per minute |
| Electrical components | Delta inverter, Delta screen, Schneider low voltage, Omron encoder |
| Notes | Yangli 80-ton punch press: 60-70 strokes per minute; die feeding step: 300mm; production speed: 18-20 meters per minute |
Contact us for a quote on cable tray machines！
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.

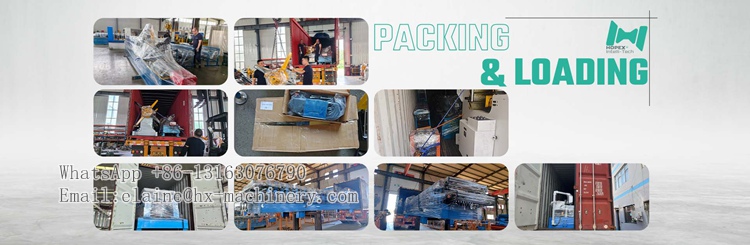

Pictures of HOPEX upright roll forming machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
