Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

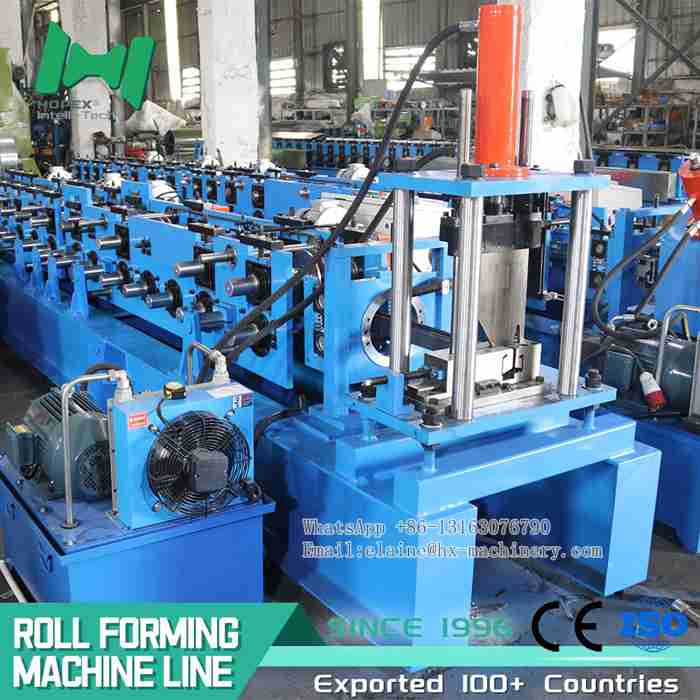

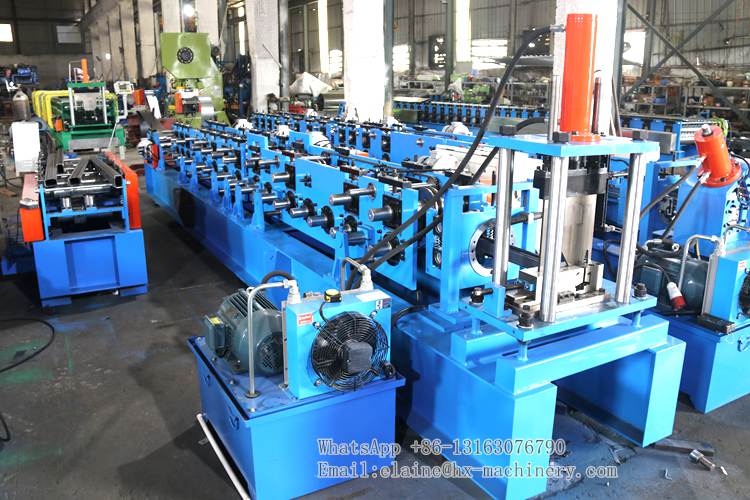

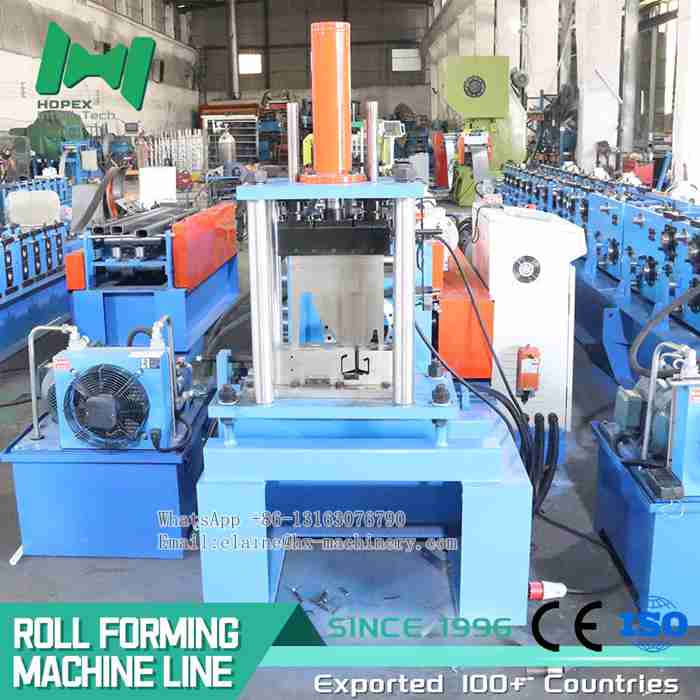

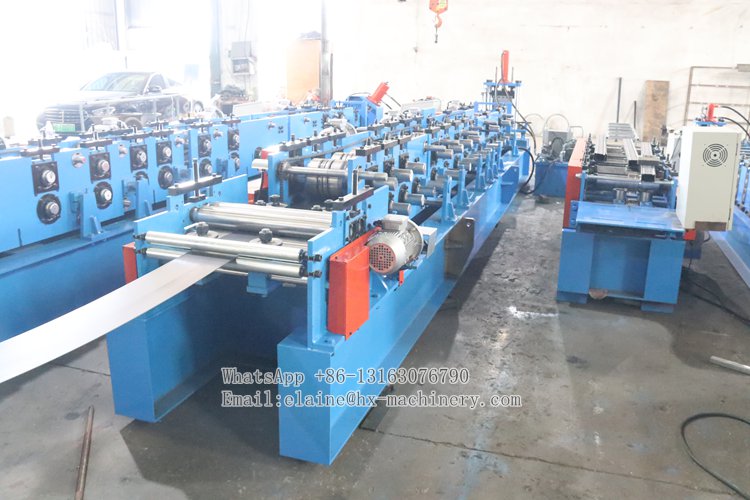

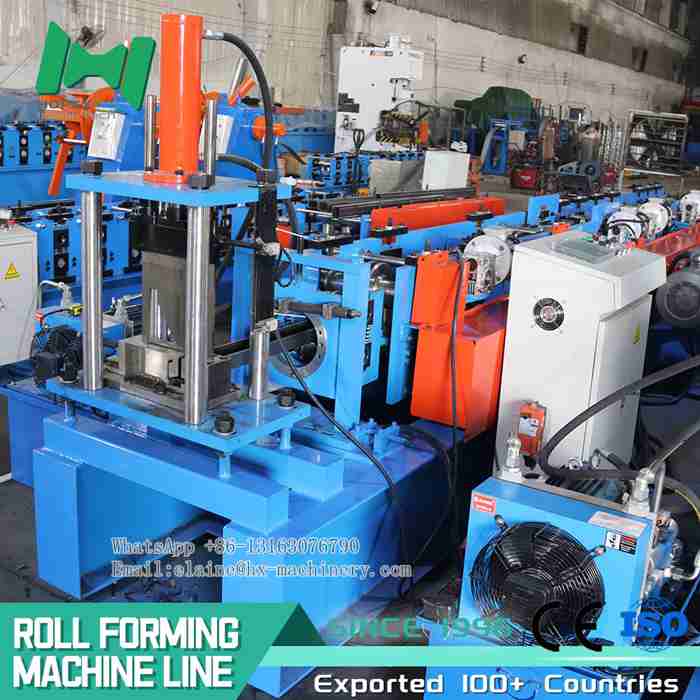

HOPEX box beam machine
We provide HOPEX box beam machine that adapt to different product sizes and technical demands. Equipped with top-brand electrical parts and high-precision transmission systems, our machines run steadily at high speed and offer long service life. From design to installation, we deliver a complete turnkey solution that helps customers enhance capacity and strengthen market competitiveness.
Contact us for a quote on cable tray machines！

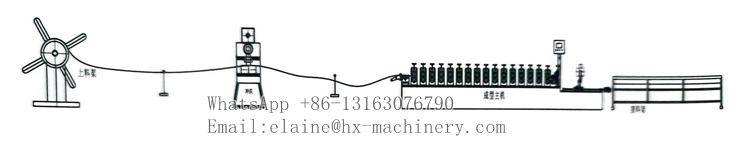

The composition of the machine

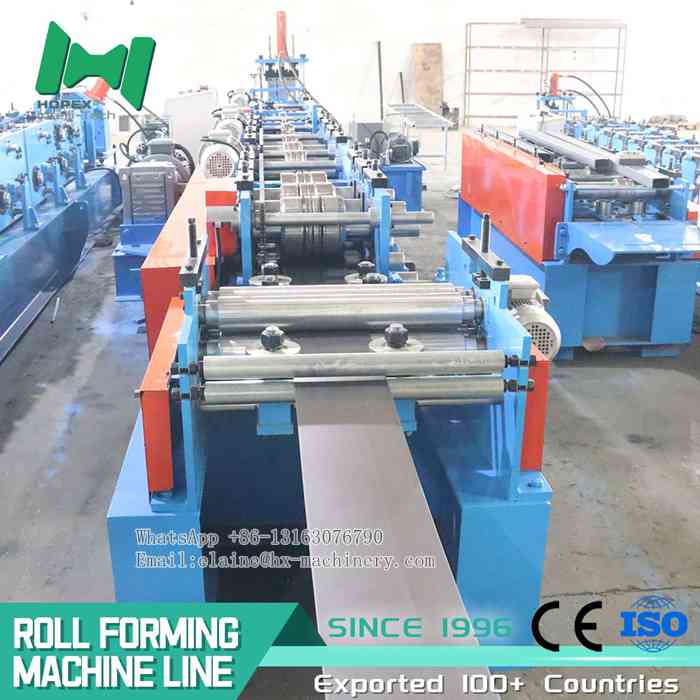

Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

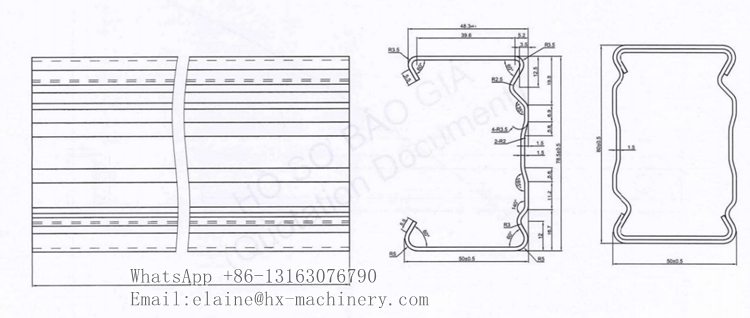

Picture of product profile drawing
HOPEX box beam machine for Trough Trays Technical parameter
| Forming Section | Loading: Manual (2.5-ton load capacity) |
| Forming Machine Section | Main forming machine: 60 shafts × 16 rows |
| Transmission mode | Gear drive |
| Cutting | Servo tracking cutting, 1.5 kW servo motor |
| Hydraulics | 5.5 kW |
| Buckling Machine Section | Conveyor roller platform: 3m long |
| Electrical components | Taiwan Delta inverter, Schneider low voltage, Omron encoder |
| Roller material | LR12 |
| Speed | Approximately 0-20 m/min |
Contact us for a quote on cable tray machines！
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Pictures of HOPEX box beam machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
