Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

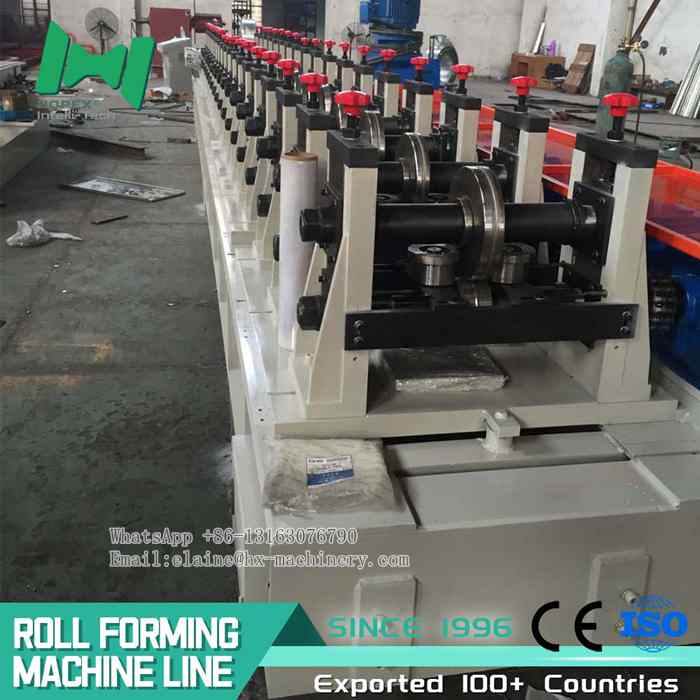

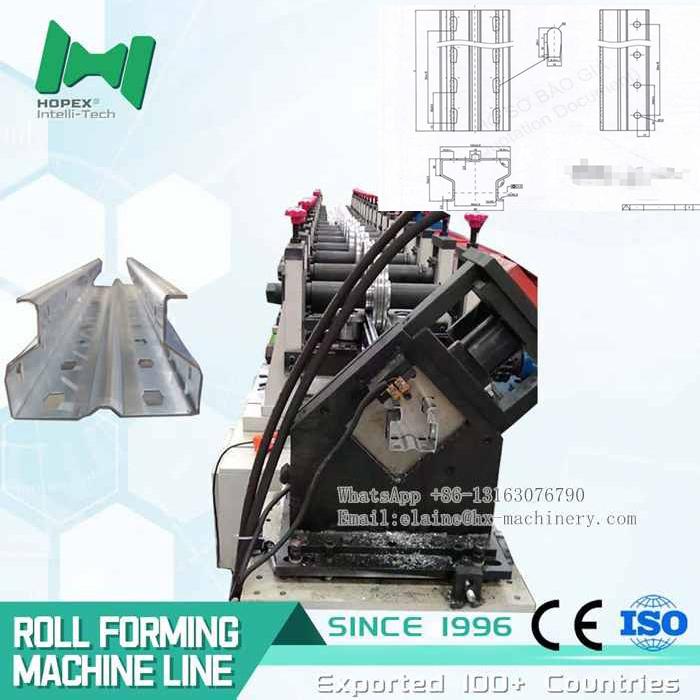

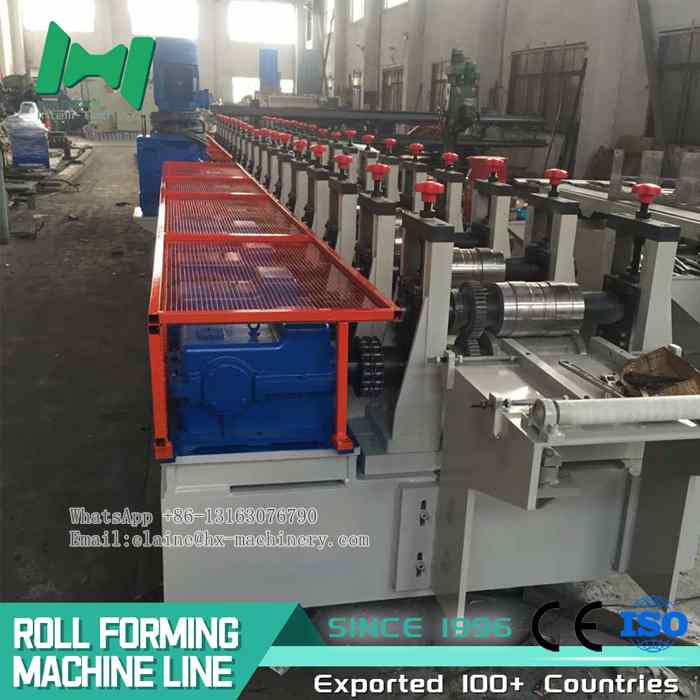

HOPEX upright rack roll forming machine
HOPEX upright rack roll forming machine integrates high efficiency, stability, and intelligence into one complete production line. It ensures smooth forming, accurate punching, and fast cutting for uprights, beams, and all supporting accessories. With a user-friendly control system and durable structure, it greatly improves productivity while lowering maintenance costs, making it a reliable solution for modern shelf manufacturers.
Contact us for a quote on cable tray machines！

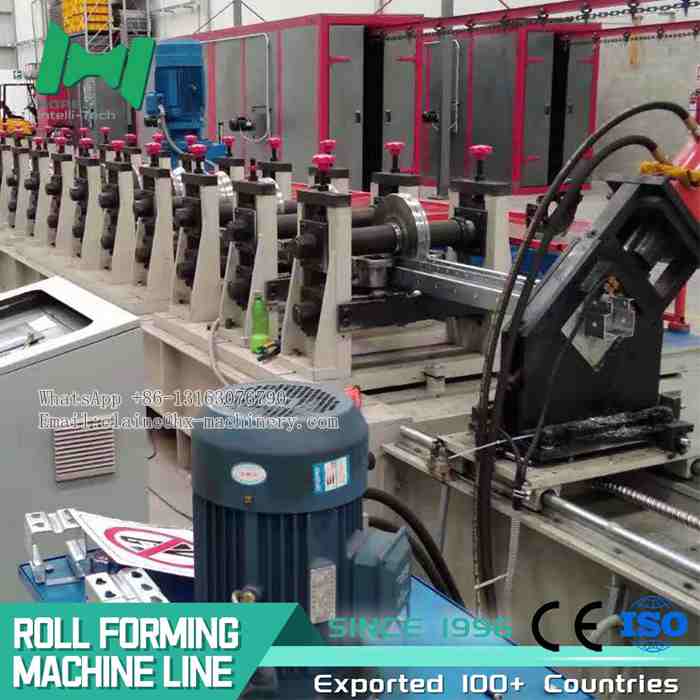

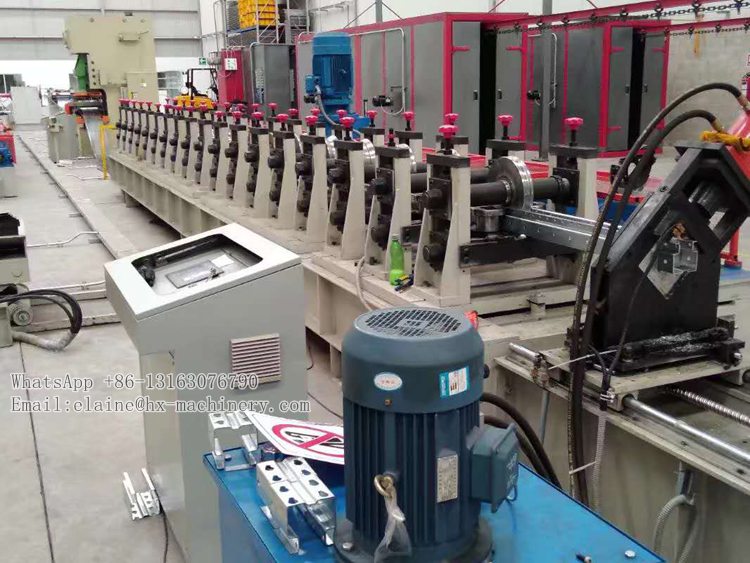

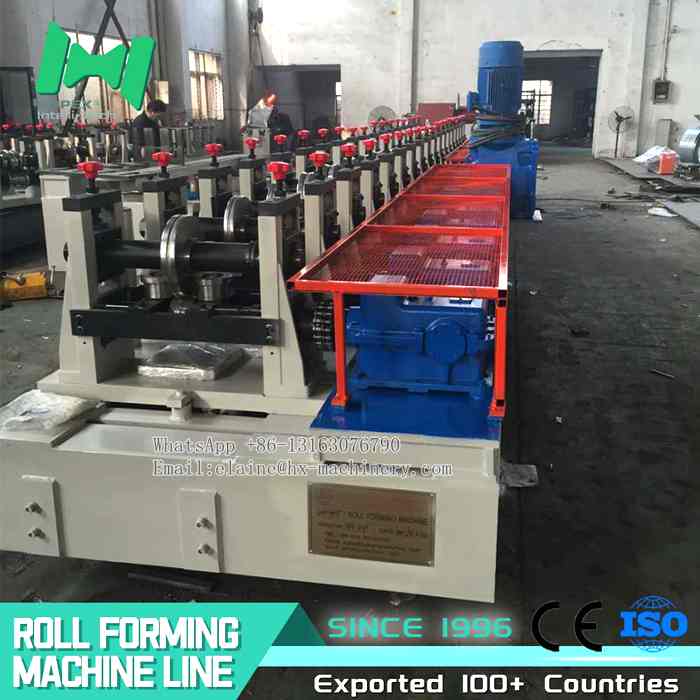

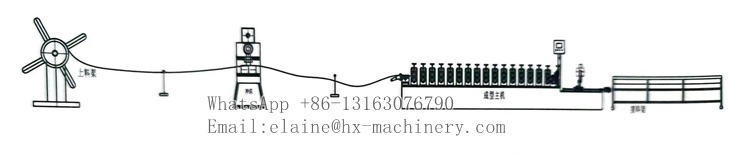

The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

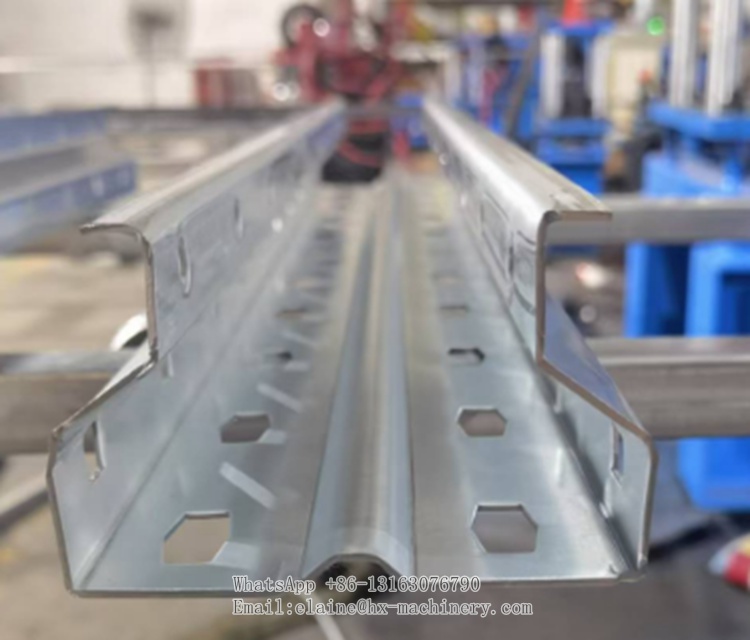

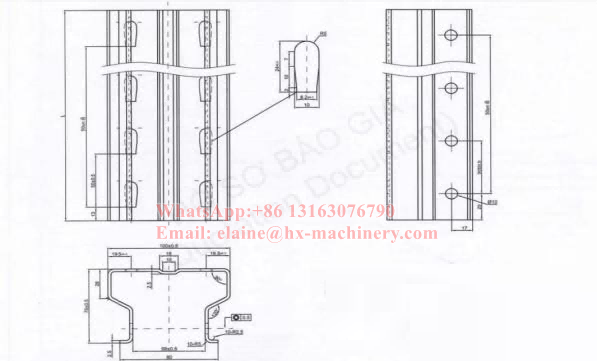

Picture of product profile drawing
HOPEX upright rack roll forming machine for Trough Trays Technical parameter
| Uncoiling | Electric uncoiling (3-ton load capacity) with 5-roller leveling and feeding |
| Punching | Equipped with Jiangsu Yangli 80-ton pneumatic punch press, servo feeding for punching (die material: DC53; die type: replaceable insert) |
| Forming Main Machine | 70 shaft × 18-pass forming |
| Cutting | Digital hole cutting or pneumatic pinhole cutting; hydraulic station power: 7.5kW |
| Production speed | 18-20 meters per minute |
| Electrical components | Delta inverter, Delta screen, Schneider low voltage, Omron encoder |
| Notes | Yangli 80-ton punch press: 60-70 strokes per minute; die feeding step: 300mm; production speed: 18-20 meters per minute |
Contact us for a quote on cable tray machines！
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Pictures of HOPEX upright rack roll forming machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
