Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

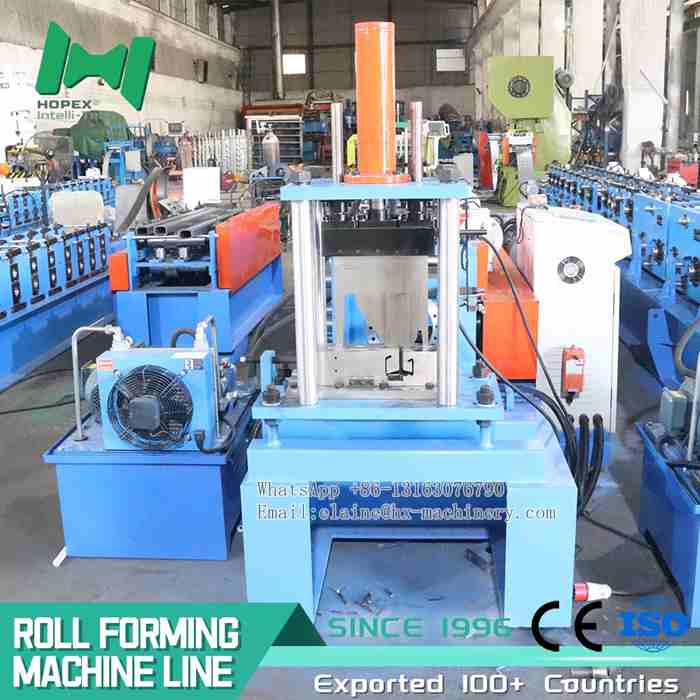

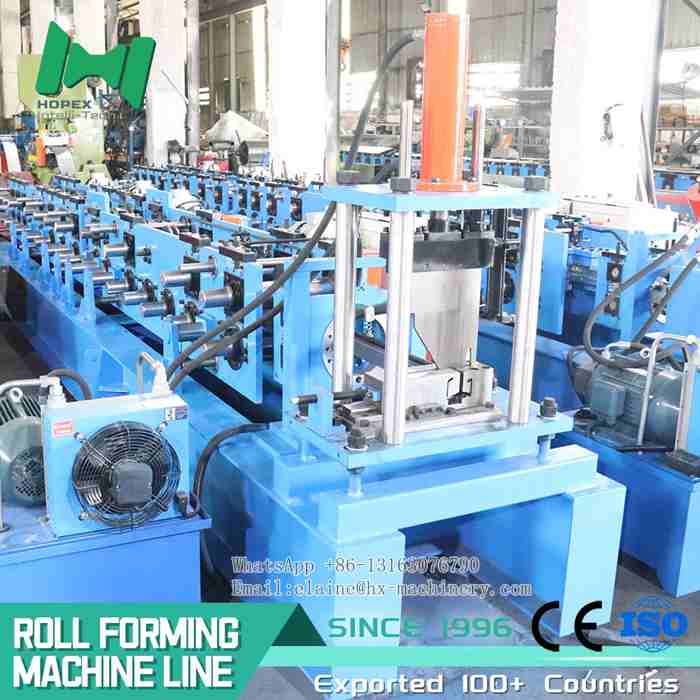

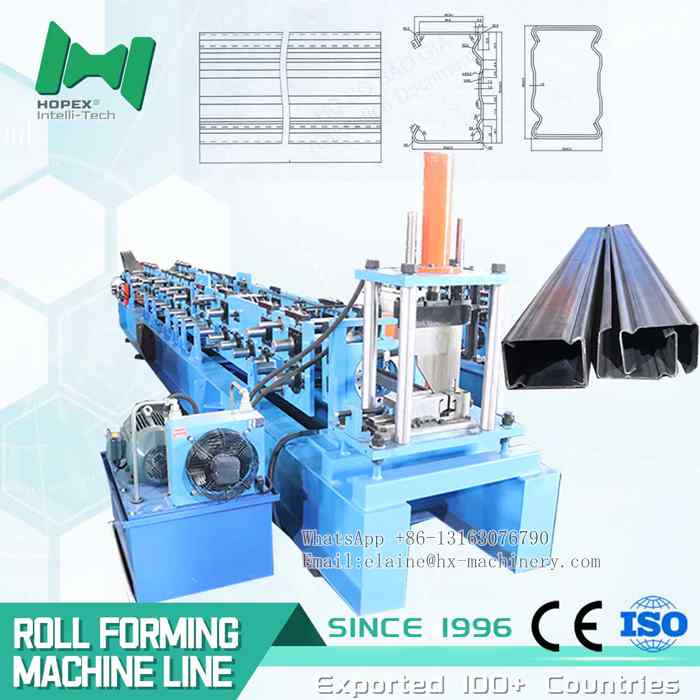

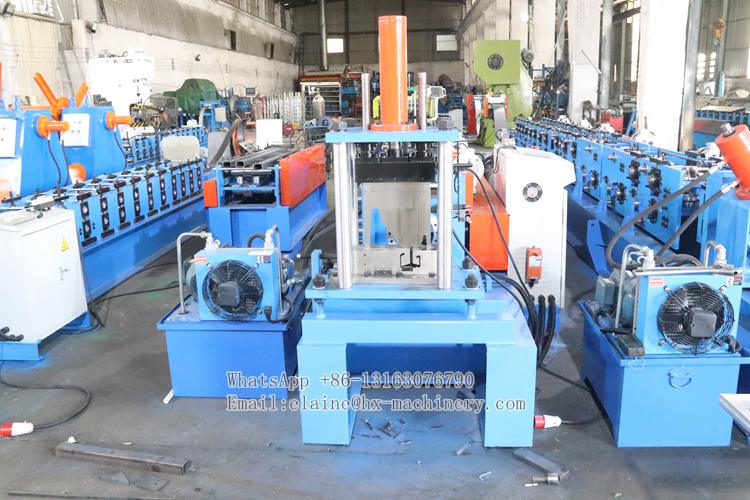

HOPEX beam roll forming machine
Specialized for the warehousing and logistics sector, HOPEX beam roll forming machine combine high-speed processing with exceptional structural integrity. Featuring robust gear transmission and advanced hydraulic systems, they handle heavy-gauge materials with ease, producing components that meet strict load-bearing standards. The intuitive HMI interface simplifies operation and reduces setup time between production runs, offering a cost-effective, future-proof solution for businesses aiming to stay ahead in a competitive market.
Contact us for a quote on cable tray machines！

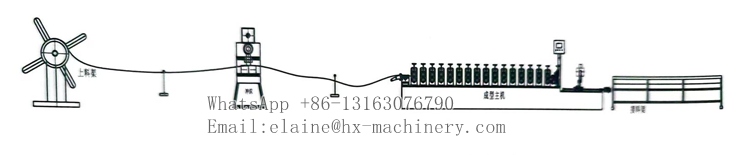

The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

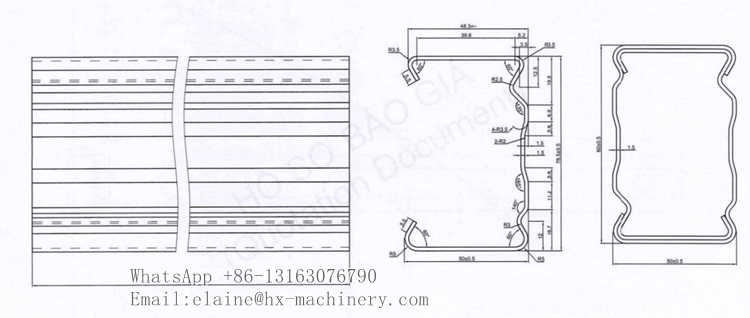

Picture of product profile drawing
HOPEX beam roll forming machine for Trough Trays Technical parameter
| Forming Section | Loading: Manual (2.5-ton load capacity) |

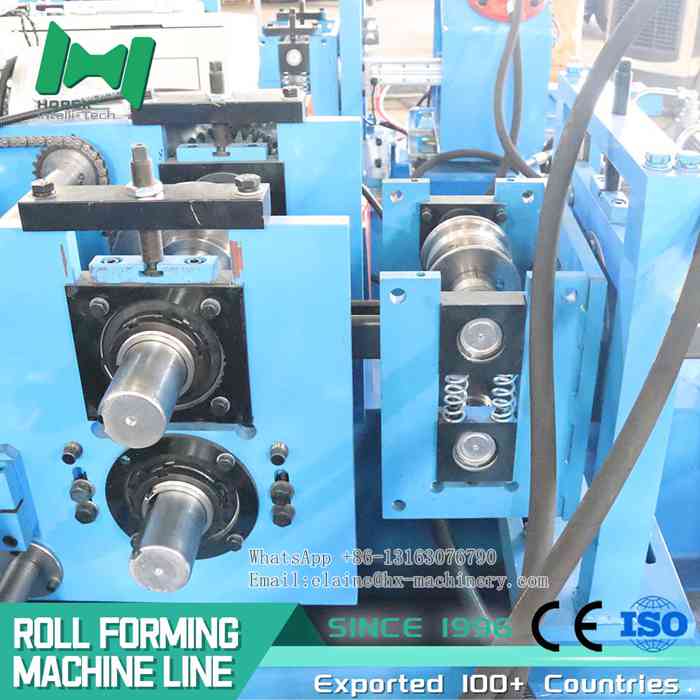

| Forming Machine Section | Main forming machine: 60 shafts × 16 rows |
| Transmission mode | Gear drive |

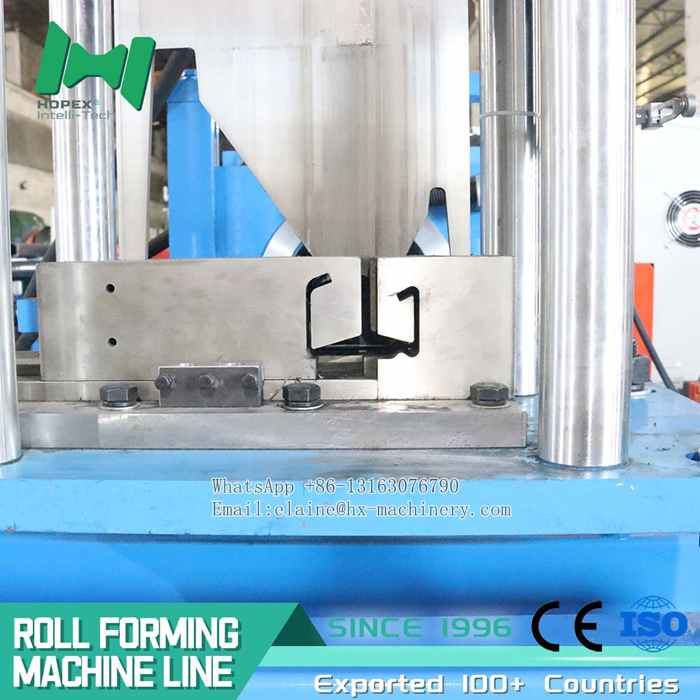

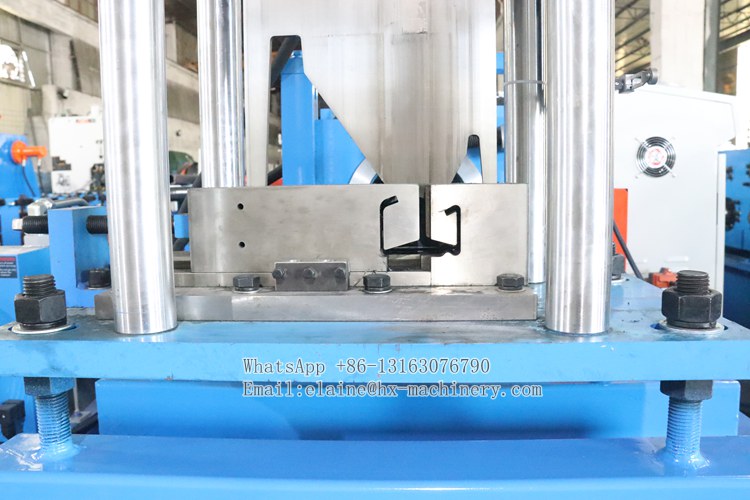

| Cutting | Servo tracking cutting, 1.5 kW servo motor |
| Hydraulics | 5.5 kW |
| Buckling Machine Section | Conveyor roller platform: 3m long |
| Electrical components | Taiwan Delta inverter, Schneider low voltage, Omron encoder |
| Roller material | LR12 |
| Speed | Approximately 0-20 m/min |
Contact us for a quote on cable tray machines！
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Pictures of HOPEX beam roll forming machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
