Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

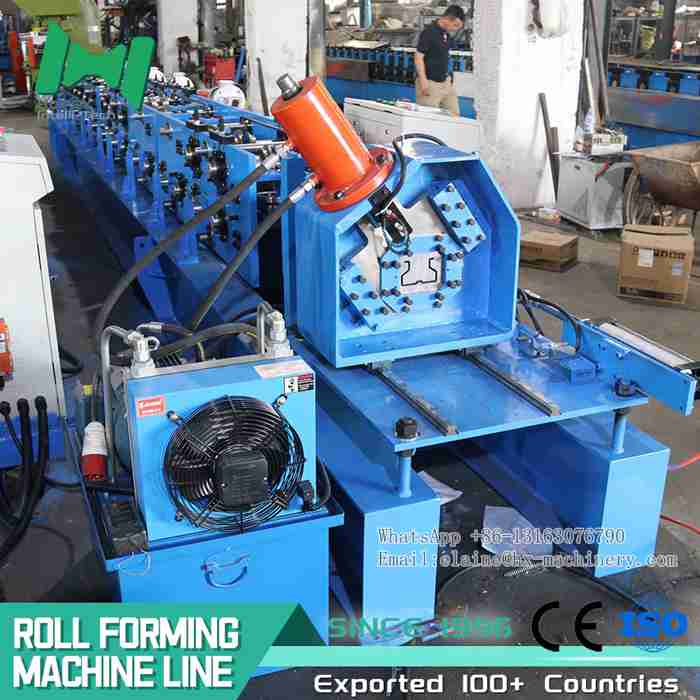

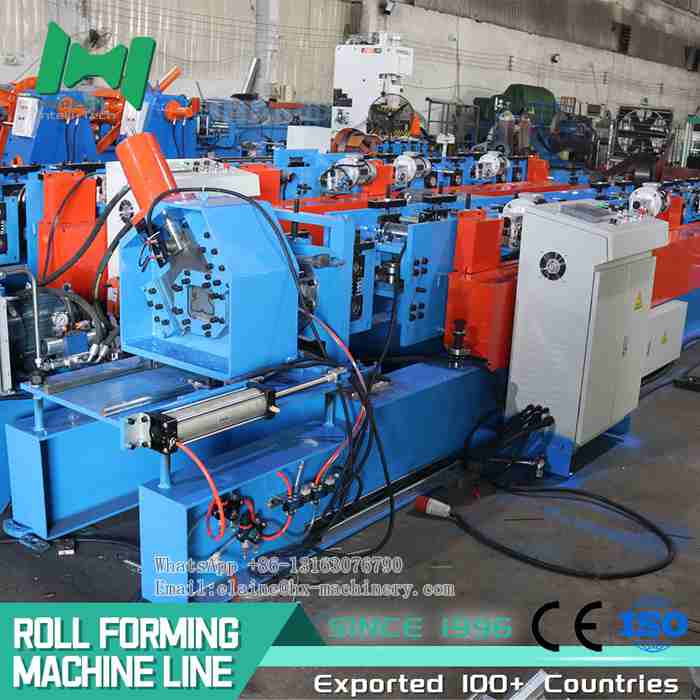

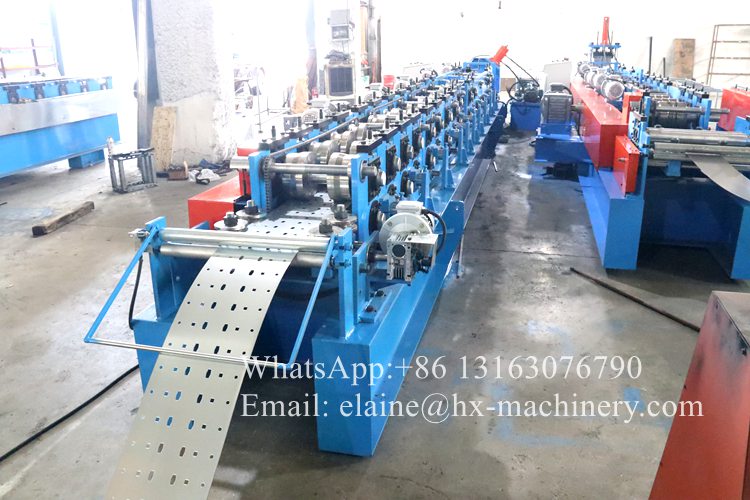

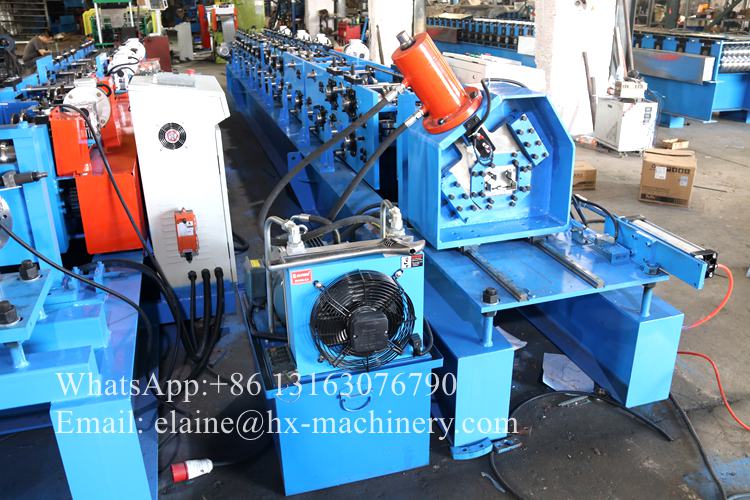

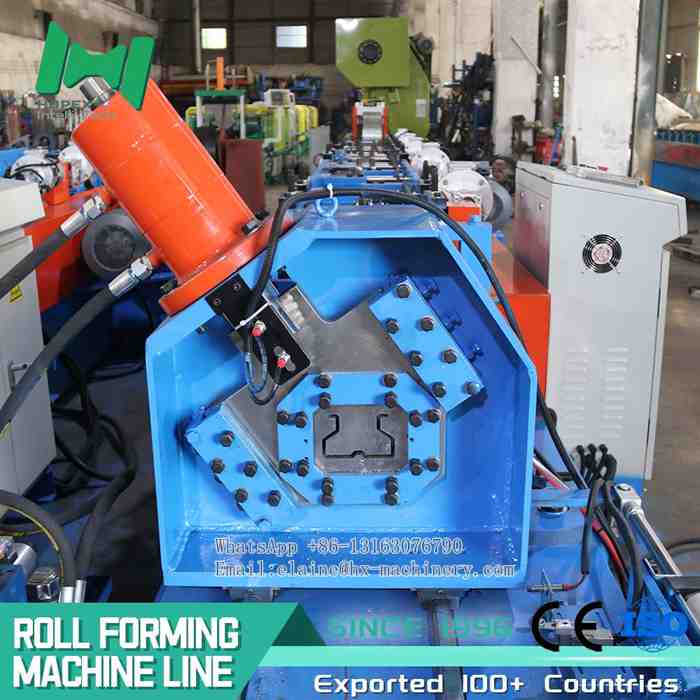

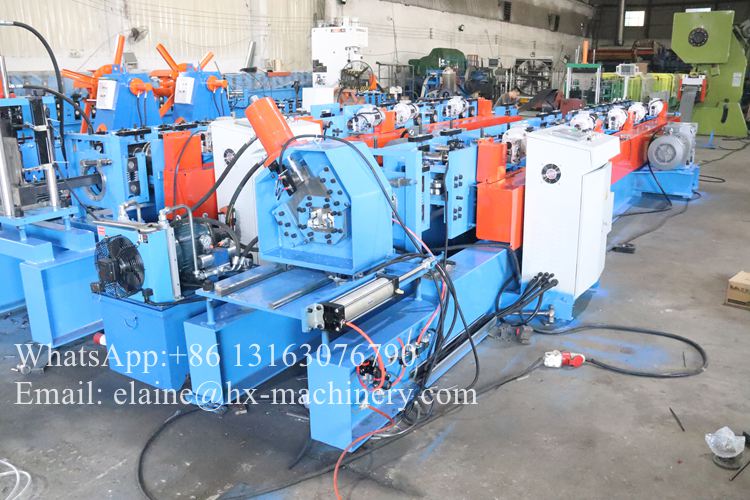

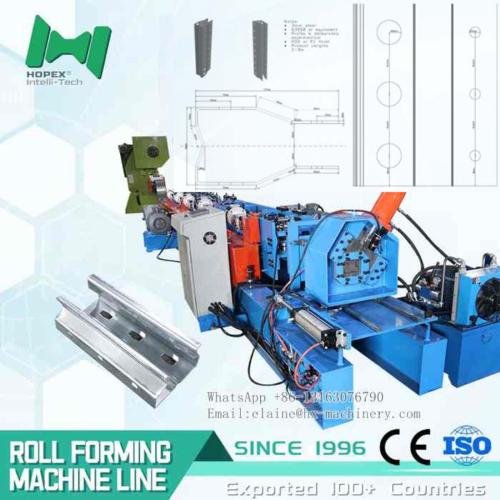

HOPEX storage rack roll forming machine
Our shelf roll forming machine delivers stable, high-speed production for all types of storage rack systems. Designed with precision components and a robust structure, it ensures consistent forming quality and long-term durability. The automated control system simplifies operation, reduces manual errors, and boosts overall output. Ideal for industrial manufacturers, it combines reliability, efficiency, and cost-effectiveness in one professional solution.
Contact us for a quote on cable tray machines！

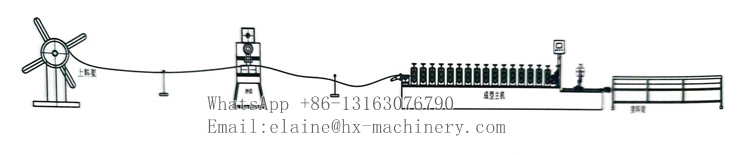

The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

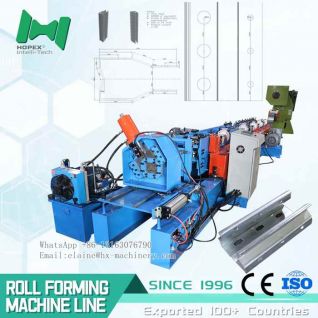

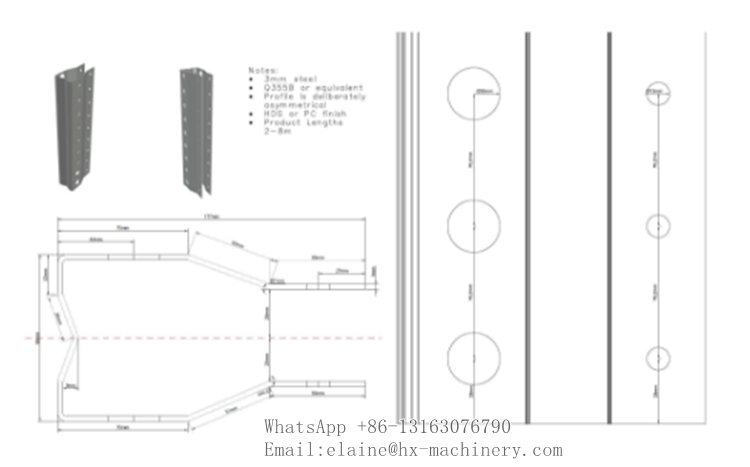

Picture of product profile drawing
HOPEX storage rack roll forming machine for Trough Trays Technical parameter
| Forming Stations | 24 |
| Side Wall Plate Thickness | 22mm |
| Frame Specification | 450 |
| Roller Material | GCr15 |
| Shaft Diameter | 75mm |
| Motor Power | 22kW |
| Forming speed | 2-8 meters per minute |
Contact us for a quote on cable tray machines！
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Pictures of HOPEX storage rack roll forming machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
