Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

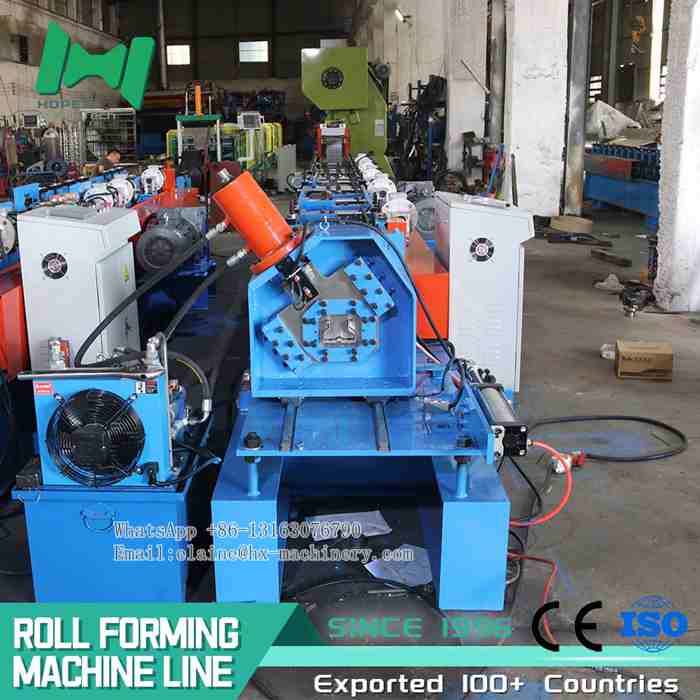

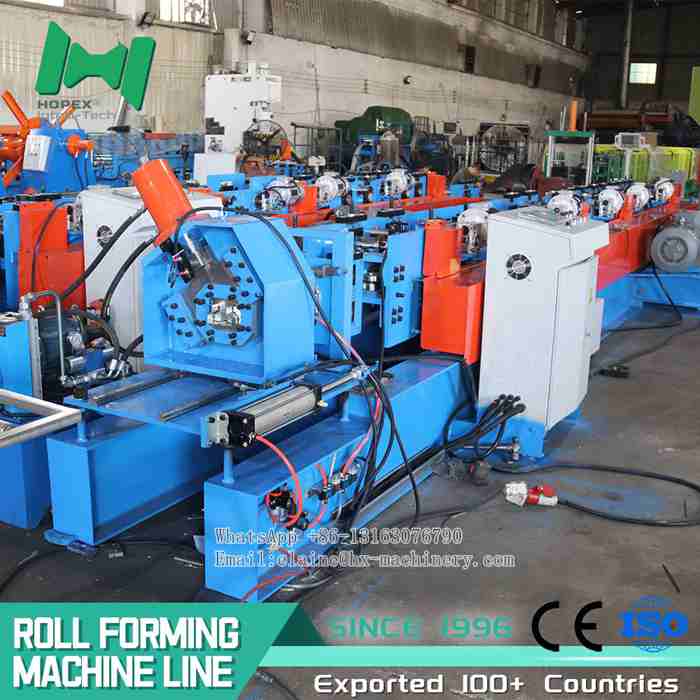

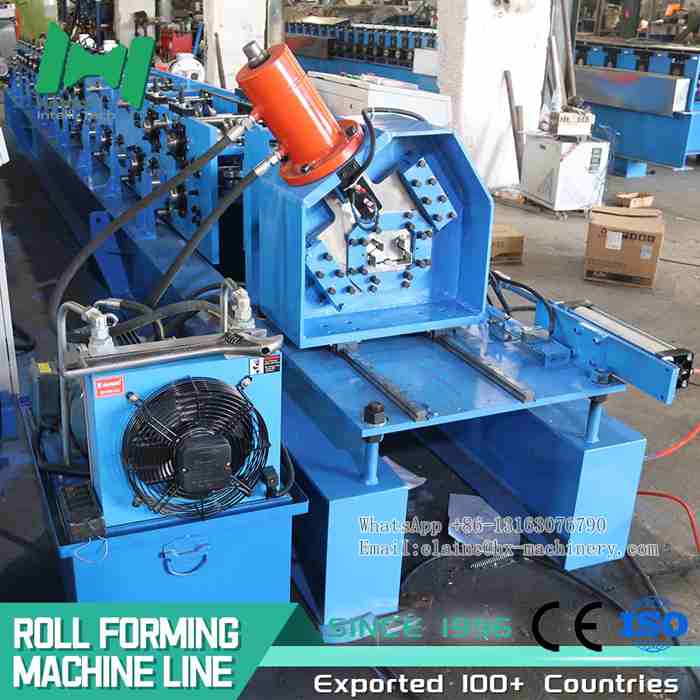

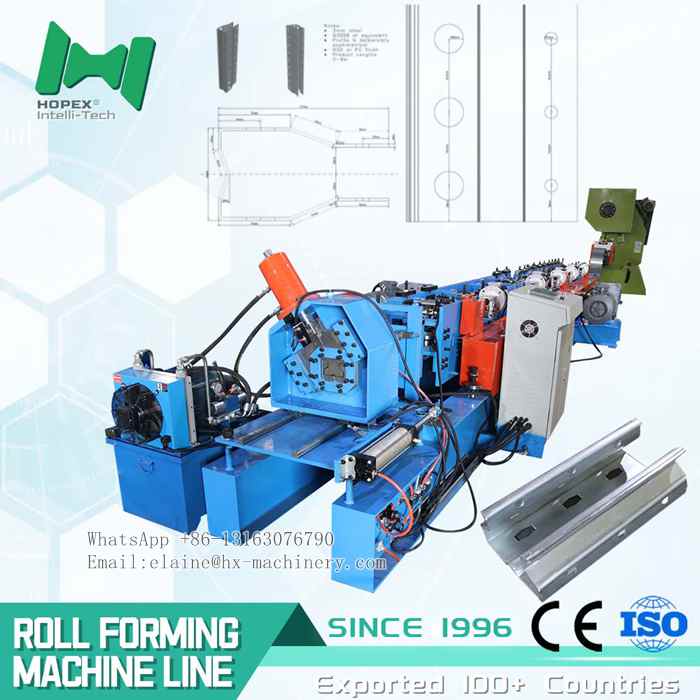

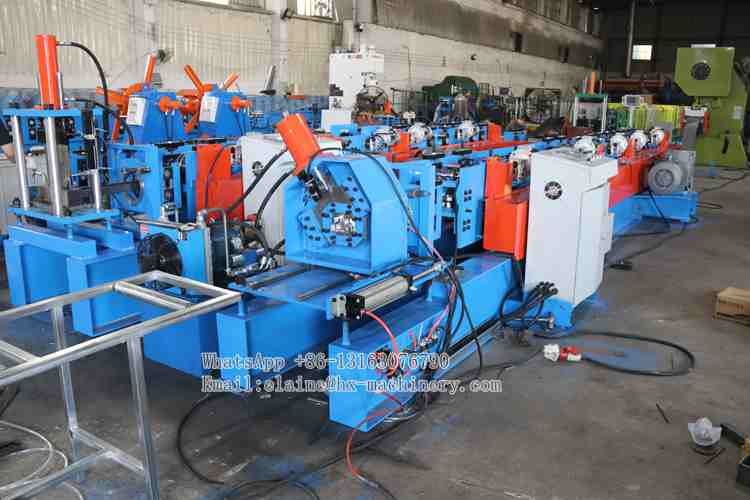

HOPEX rack upright roll forming machine
HOPEX rack upright roll forming machine is a turnkey solution for fabricating all critical storage components, from upright frames to cross braces. Built with industry-leading components from Delta, Schneider, and Omron, it ensures stable performance and precise control, even at maximum production speeds of 40 meters per minute. The equipment’s modular design allows for easy customization, enabling manufacturers to adapt quickly to evolving customer specifications and maintain a competitive edge in the global storage equipment market.
Contact us for a quote on cable tray machines！

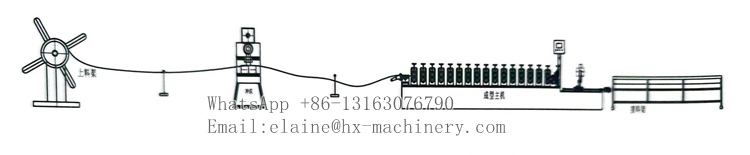

The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

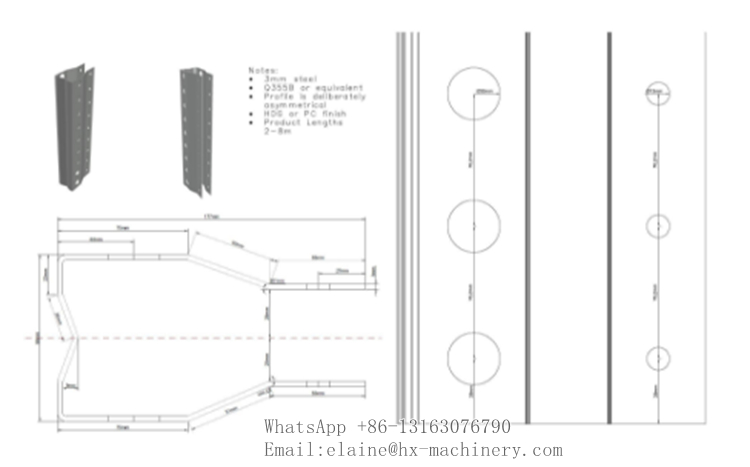

Picture of product profile drawing
HOPEX rack upright roll forming machine for Trough Trays Technical parameter
| Forming Stations | 24 |
| Side Wall Plate Thickness | 22mm |
| Frame Specification | 450 |
| Roller Material | GCr15 |
| Shaft Diameter | 75mm |
| Motor Power | 22kW |
| Forming speed | 2-8 meters per minute |
Contact us for a quote on cable tray machines！
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Pictures of HOPEX rack upright roll forming machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
