Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

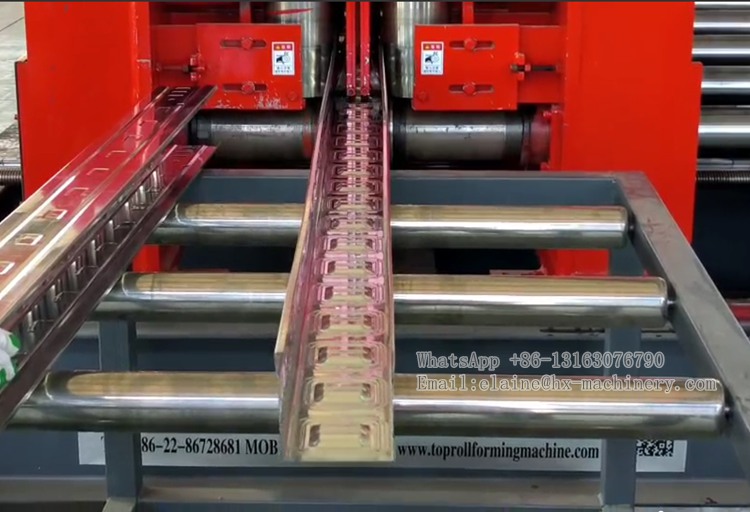

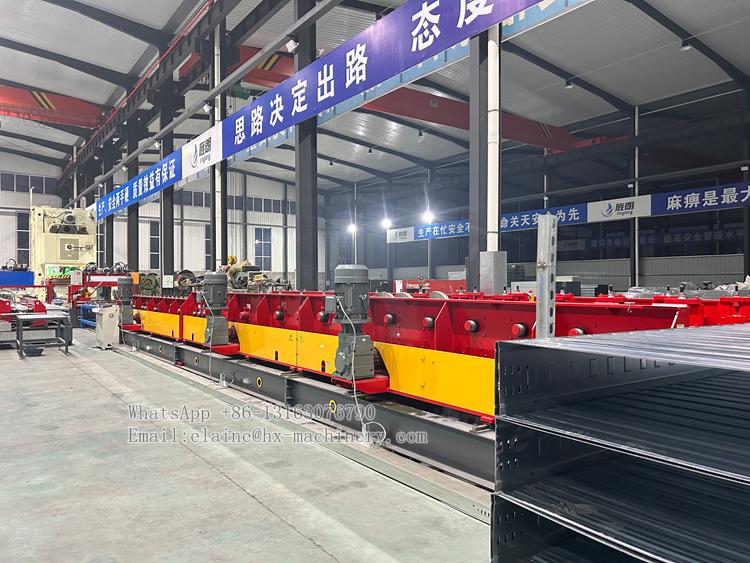

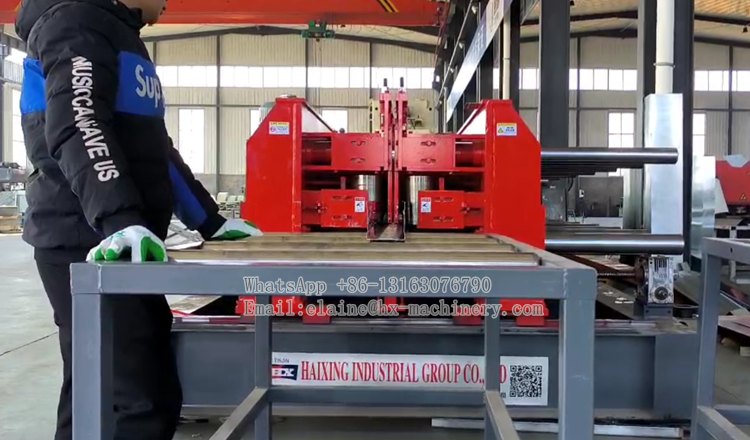

HOPEX galvanized cable tray making machine
HOPEX galvanized cable tray making machine features an ergonomic, lightweight design that allows for effortless installation and flexible on-site modifications, significantly reducing labor costs and construction time. Boasting efficient heat dissipation and a smooth interior to prevent cable abrasion, it ensures the safe and organized management of cables in both high-density data centers and complex industrial settings.
Contact us for a quote on cable tray machines！
HOPEX galvanized cable tray making machine, it ensures the safe and organized management of cables in both high-density data centers and complex industrial settings.

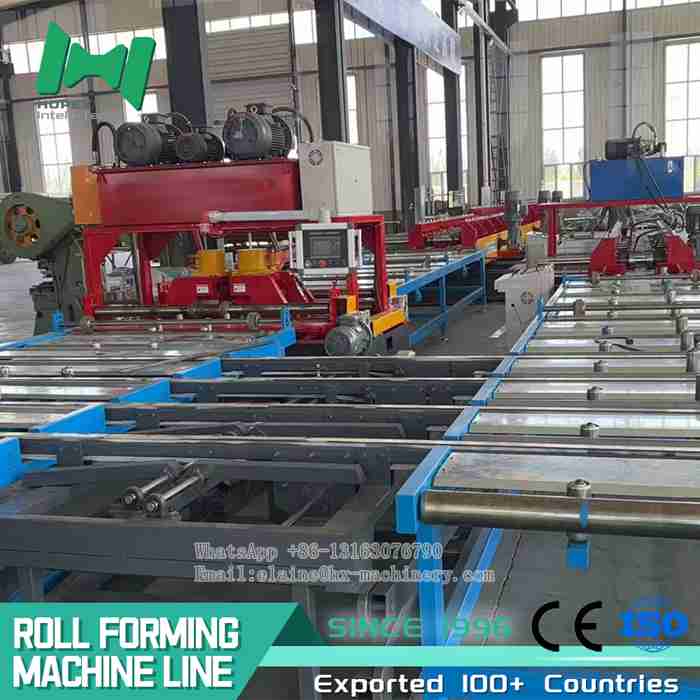

The composition of the machine

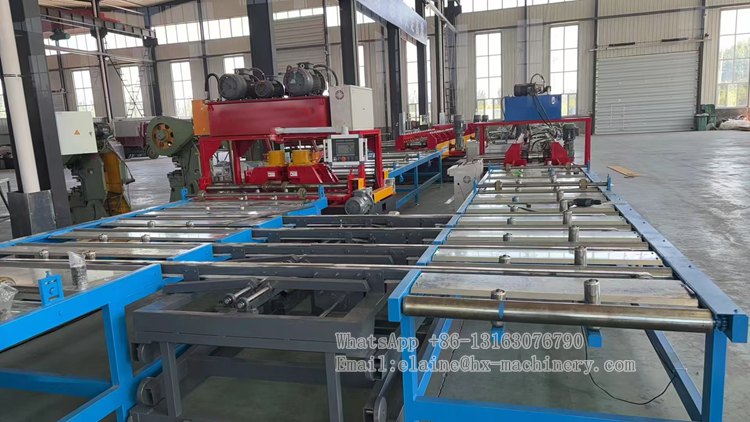

Active feeding → Leveling → Punching → Cutting → Conveying platform → Forming → Discharging

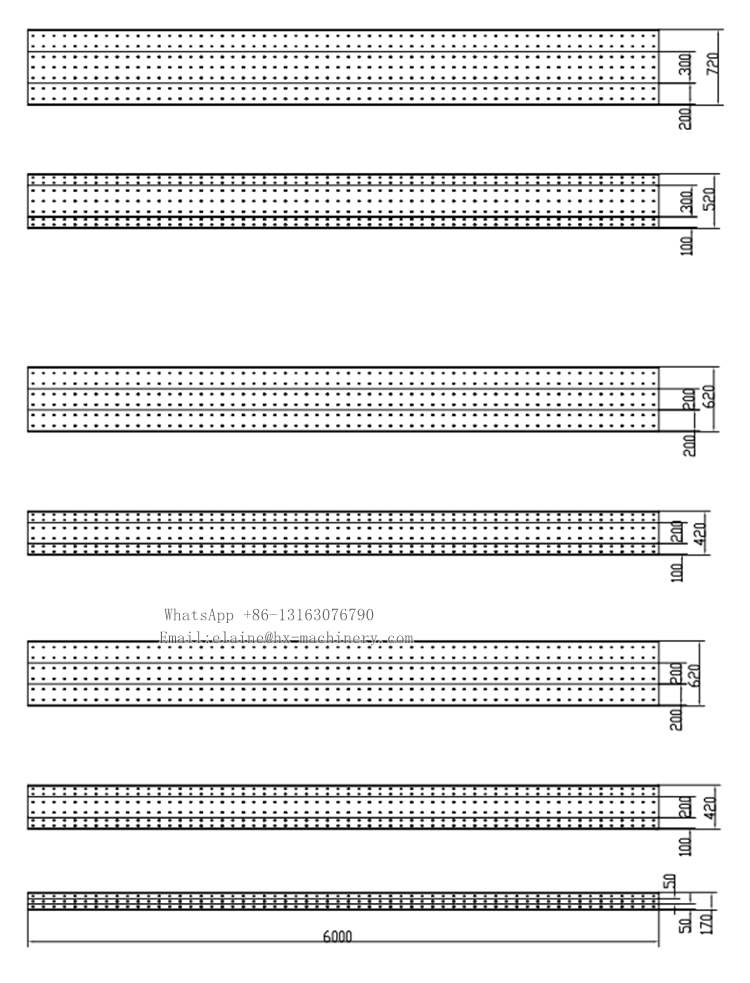

Picture of product profile drawing
HOPEX galvanized cable tray making machine for Trough Trays Technical Parameter
| Uncoiler |
expansionMotorized uncoiling functionInner diameter expansion range: φ460-520 mm |
| Leveling, Punching & Cutting All-in-one Machine | 7-rollerLifter linkagePunching (1 set of dies) |
| Small-edge Roll Forming Section | Inner-folding small edge:6-roller roll formingSmall-edge leveling |
| Rear Section of Roll Forming Machine | Opposed roll forming |
| High-speed Platform | 3-meter roller-type feeding table (1 unit) |
| Discharge Platform | 3-meter platform (1 unit)Roller-type |
| Hydraulic Station | Multiple solenoid valvesSolenoid |
| Forming Dimensions | 400/100 |
| Roll Forming Thickness | 0.8–1.5 mm |
| Roll Forming Speed | 8–16 m/min |
| Number of Forming Passes | 26 passes |
Pictures of HOPEX galvanized cable tray making machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
