HOPEX Fully Automatic perforated cable tray machine manufacturer

HOPEX Fully Automatic perforated cable tray machine manufacturer

Product ID : HP-perforated cable tray machine

Product Tags :

Product Attributes :

Develivery time:60 working days

Model:HOPEX-Perforated cable tray

Payment:30% T/T deposit,70% balance before shipping

Warranty :1 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

WhatsApp: 0086 13163076790

E-mail: elaine@hx-machinery.com

Product Description

HOPEX Fully Automatic perforated perforated cable tray machine manufacturer

HOPEX Fully Automatic perforated cable tray machine manufacturer highlights high precision and flexible customization, equipped with a humanized multi-spec design. It supports personalized customization of cable tray sizes and styles according to actual needs, accurately adapting to diverse production demands of different scenarios with high forming precision and strong adaptability, an ideal special equipment for customized cable tray production.

Contact us for a quote on cable tray machines！

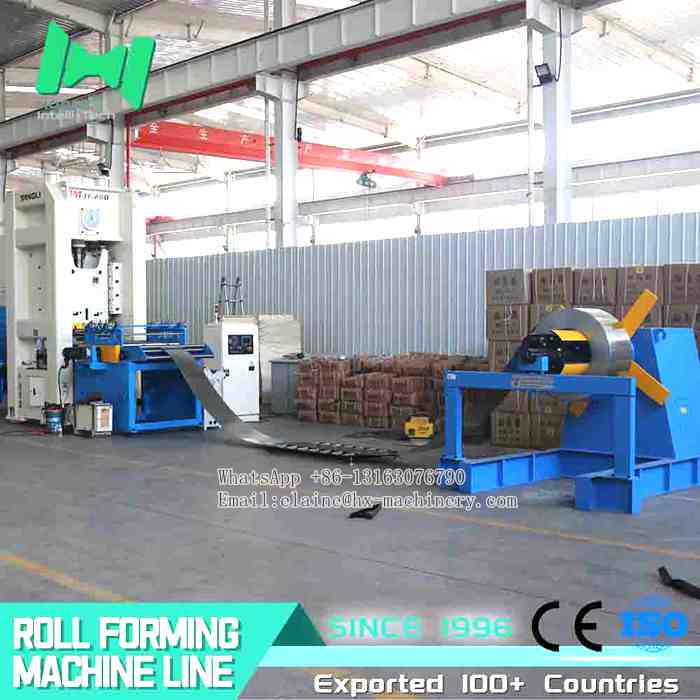

The composition of the machine

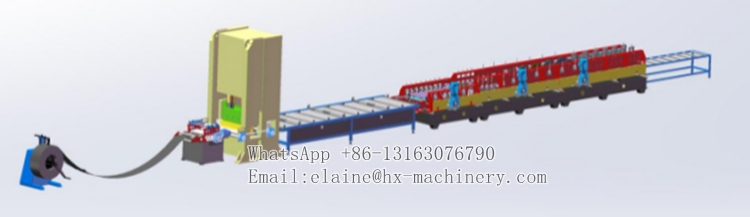

Feeding → Loading → Molding → Punching → Cutting → Discharging

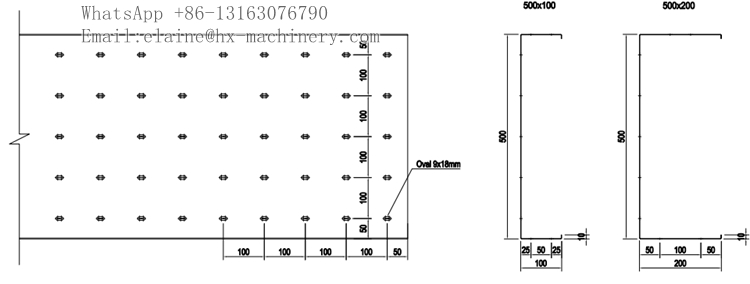

Picture of product profile drawing

HOPEX Fully Automatic perforated perforated cable tray machine manufacturer for Trough Trays Technical parameter

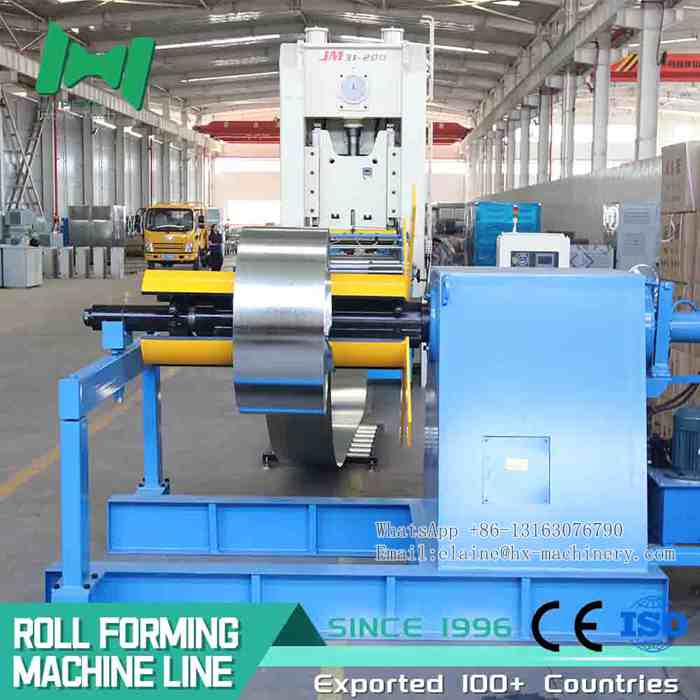

Decoiler	1.Max load capacity: 6T 2.Max coil width: 150-1100mm

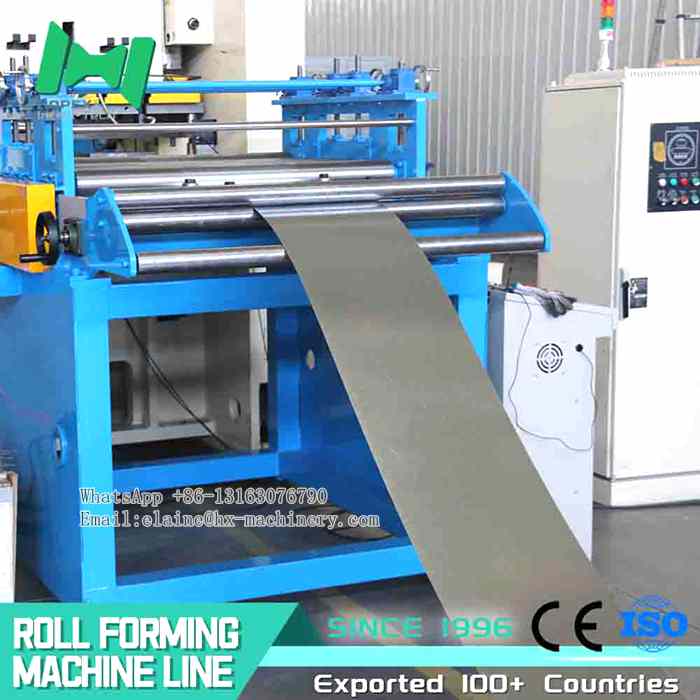

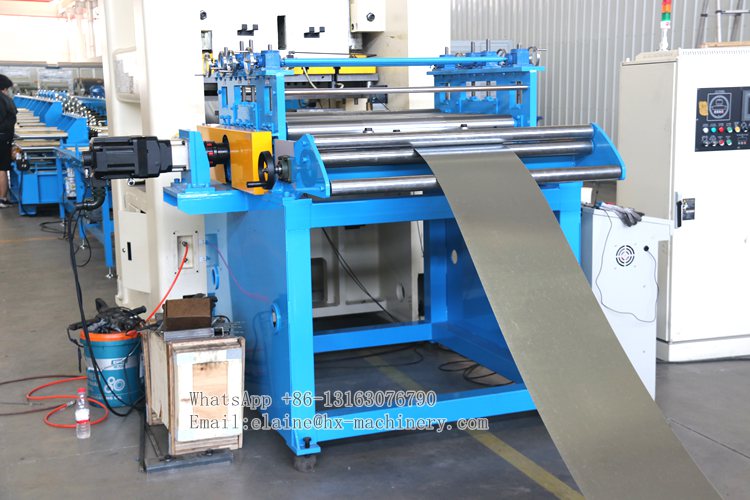

Leveling & Servo Feeding All-in-One Machine	1.8-roller leveling 2.Leveling roller diameter: 90mm 3.Leveling motor: 4KW
Punch Press (with Force)	200-ton punch press
High-speed Platform	Heavy-duty roller feeder: 6 meters

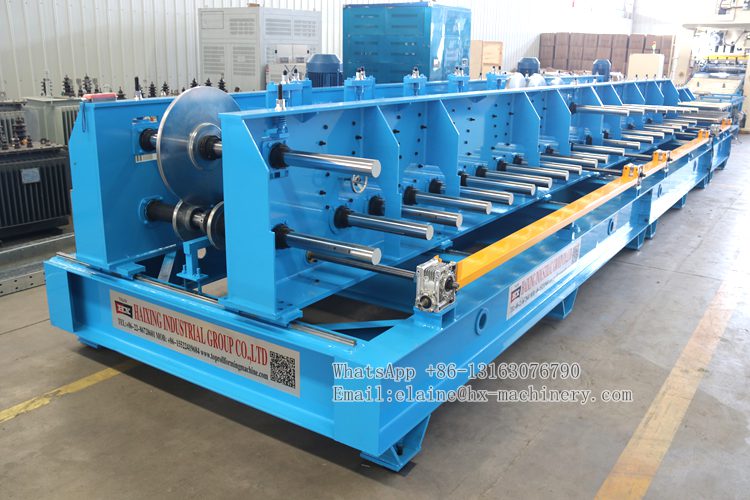

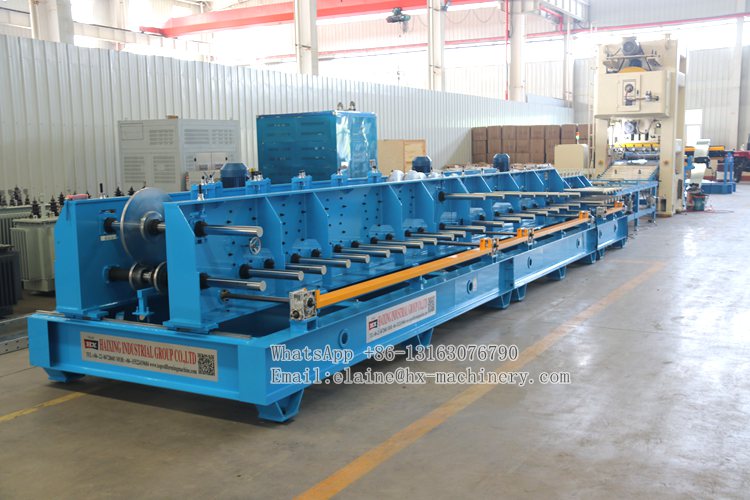

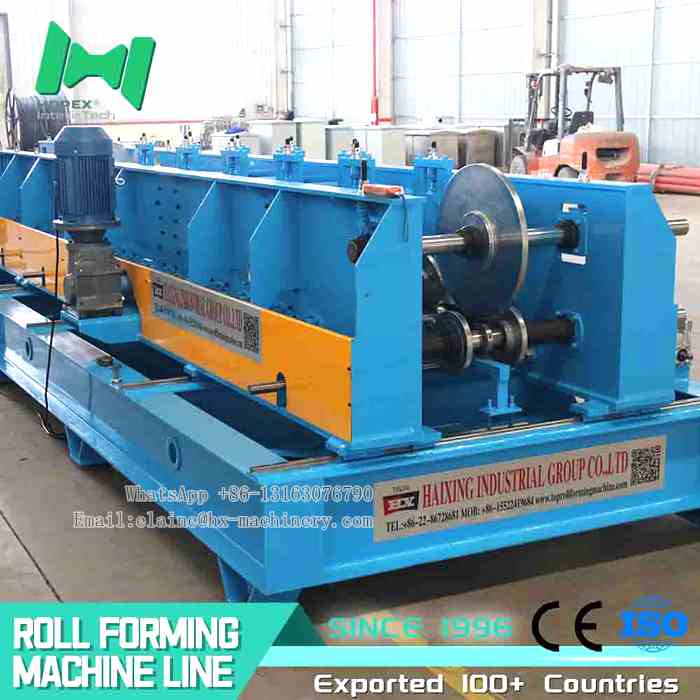

Roll Forming Section	Shaft diameter: φ65mm
Discharging Platform	3-meter platform
Hydraulic Station	Multi-group solenoid valve
Forming Specification	600×300、600×100、500×300
Roll Forming Thickness	0.7–2.0mm
Roll Forming Speed	8-12 meters per minute

Our customers

HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
