Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

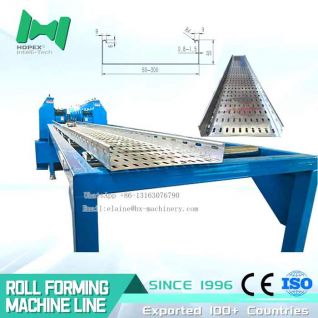

HOPEX tray roll forming machine
HOPEX tray roll forming machine is manufactured with a cold-rolled forming process, ensuring a uniform wall thickness and robust structural integrity. Our trays are available in a comprehensive range of sizes (from 100mm to 800mm in width) and configurations, including ladder type, tray type, and perforated type, to suit diverse project requirements. The surface is treated with advanced hot-dip galvanizing or powder coating, providing a corrosion-resistant layer that exceeds industry standards.
Contact us for a quote on cable tray machines！
The surface is treated with advanced hot-dip galvanizing or powder coating, providing a corrosion-resistant layer that exceeds industry standards.
The composition of the machine

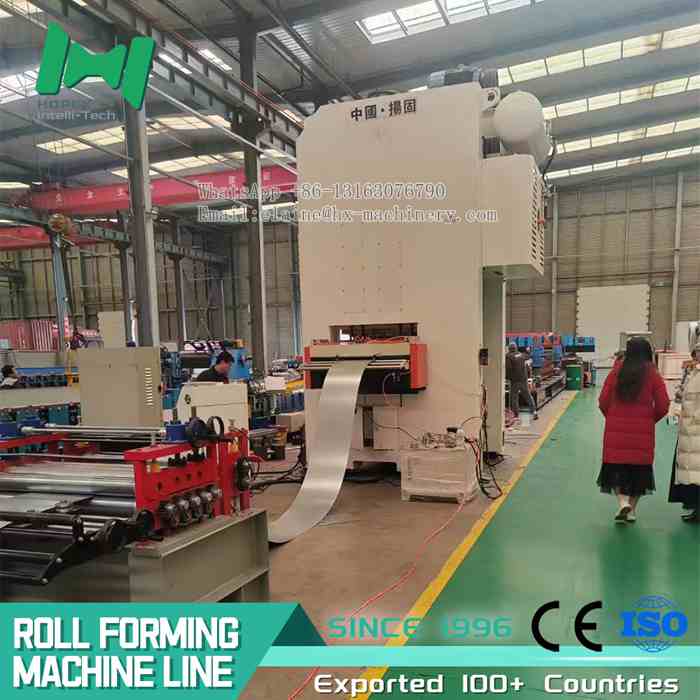

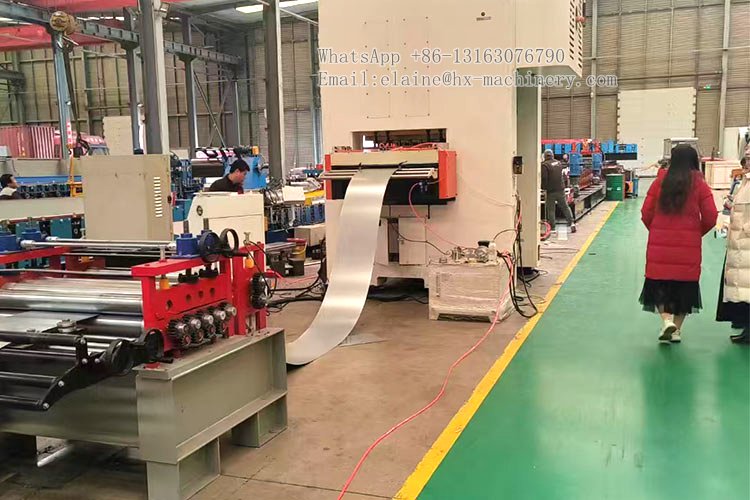

Active feeding → Leveling → Punching → Cutting → Conveying platform → Forming → Discharging

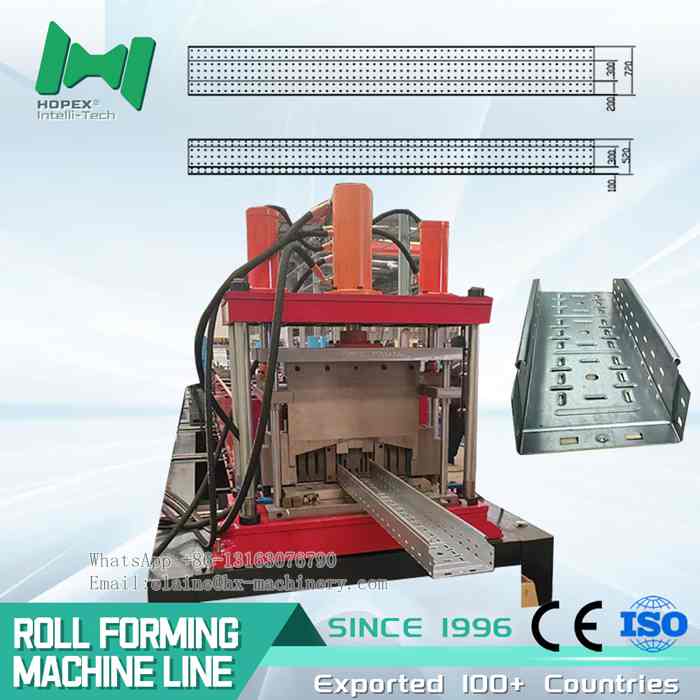

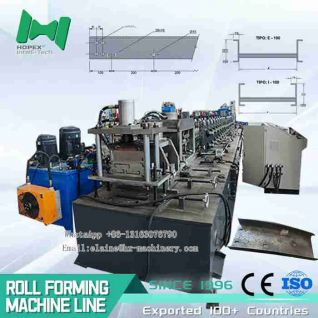

Picture of product profile drawing
HOPEX tray roll forming machine for Trough Trays Technical Parameter
| Uncoiler |
Hydraulic expansionMotorized diameter expansion range: φ460-520 mm |

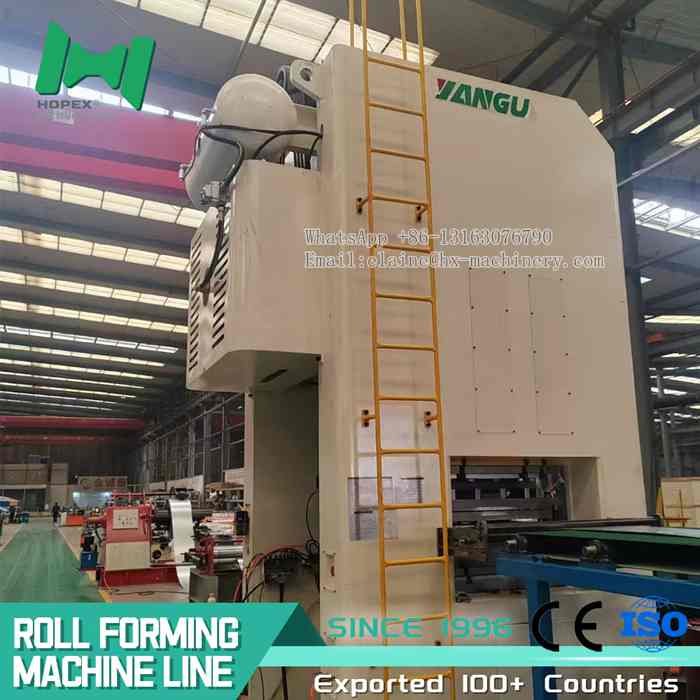

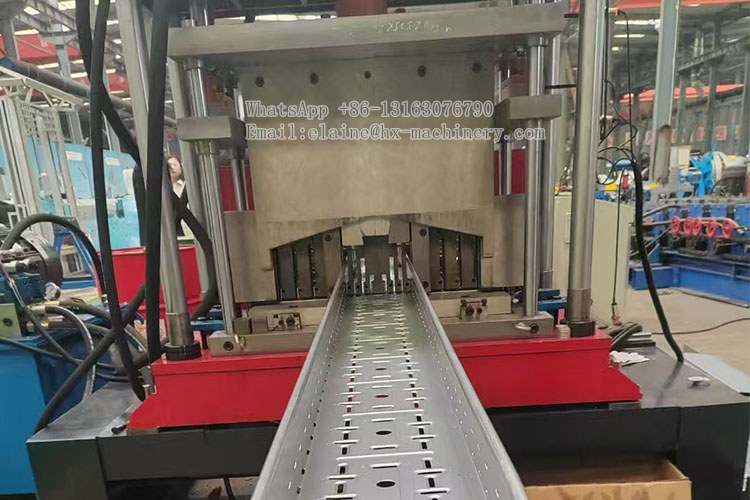

| Leveling, Punching & Cutting All-in-one Machine | 7-rollerLifter linkagePunching (1 set of dies) |

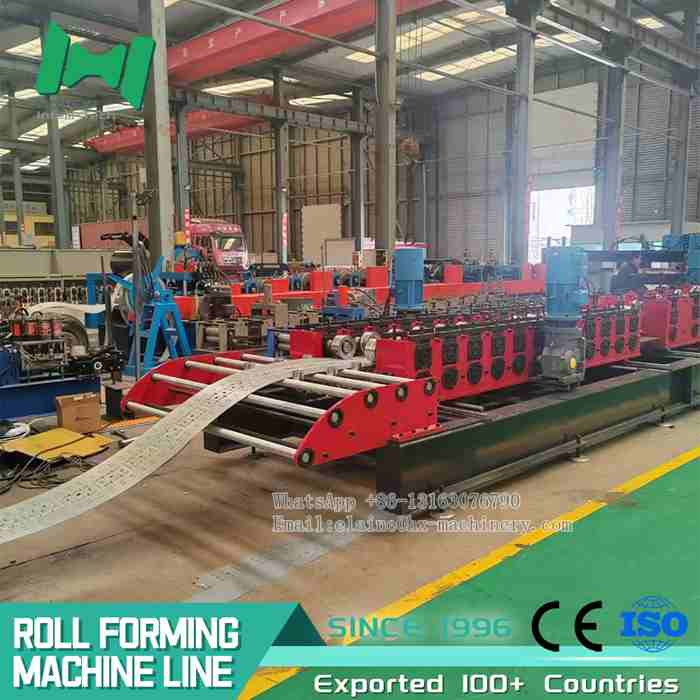

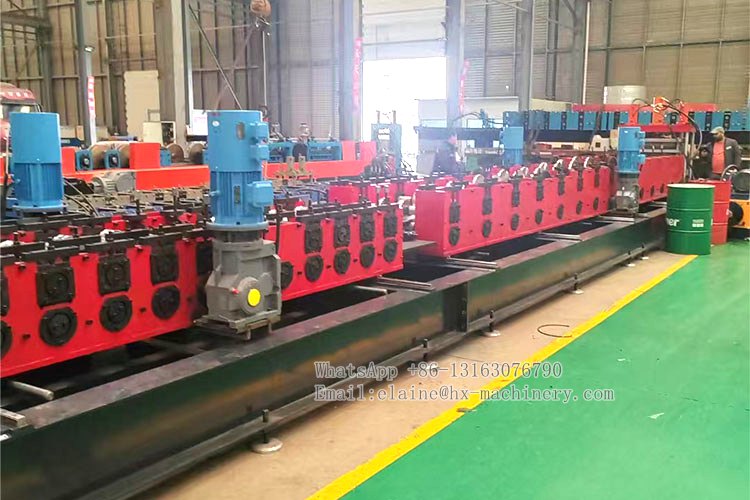

| Small-edge Roll Forming Section | Inner-folding small edge:6-roller roll formingSmall-edge leveling |
| Rear Section of Roll Forming Machine | Opposed roll forming |
| High-speed Platform | 3-meter roller-type feeding table (1 unit) |
| Discharge Platform | 3-meter platform (1 unit)Roller-type |
| Hydraulic Station | Multiple solenoid valvesSolenoid |
| Forming Dimensions | 400/100 |
| Roll Forming Thickness | 0.8–1.5 mm |
| Roll Forming Speed | 8–16 m/min |
| Number of Forming Passes | 26 passes |

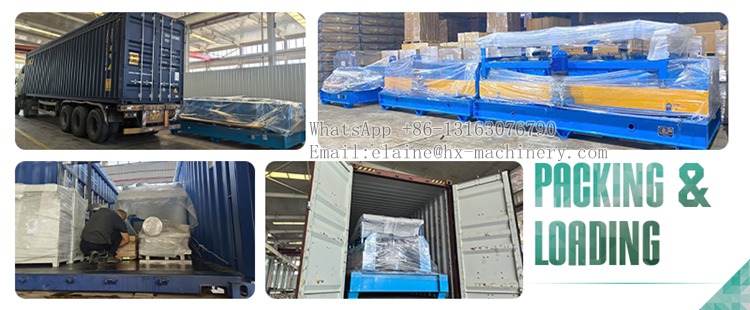

Pictures of HOPEX tray roll forming machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
