Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

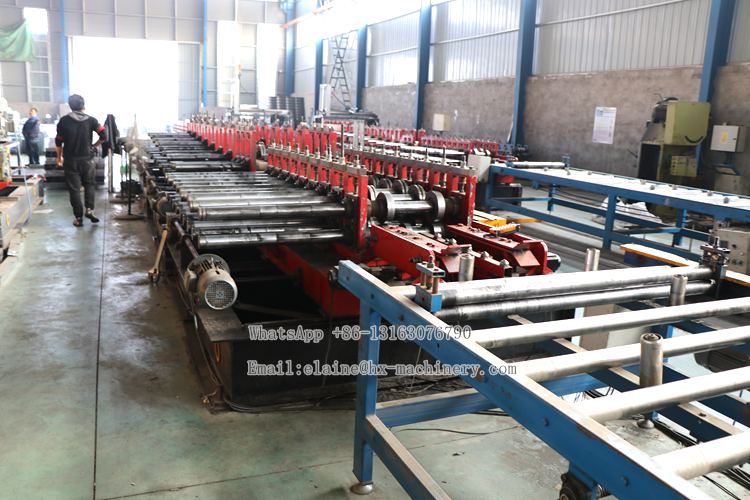

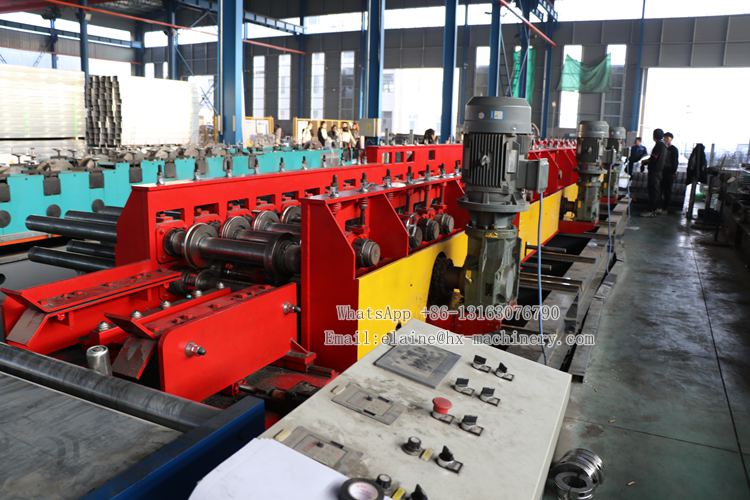

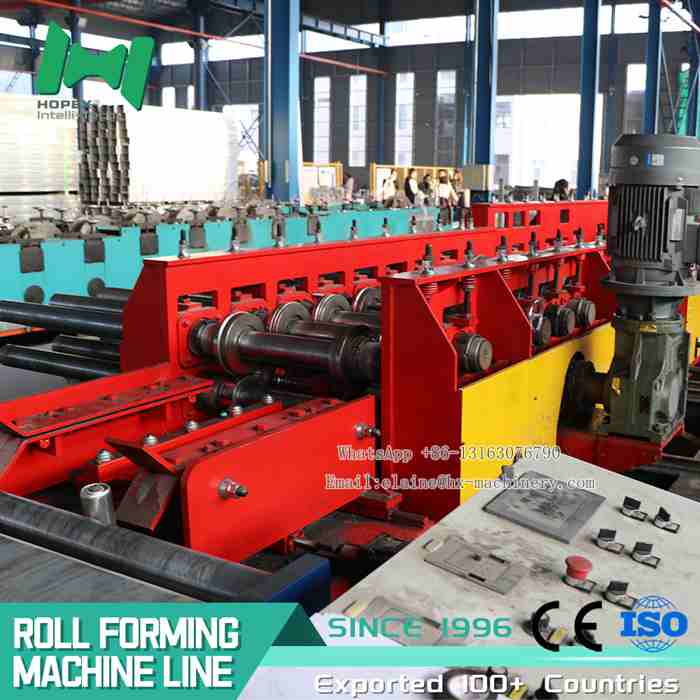

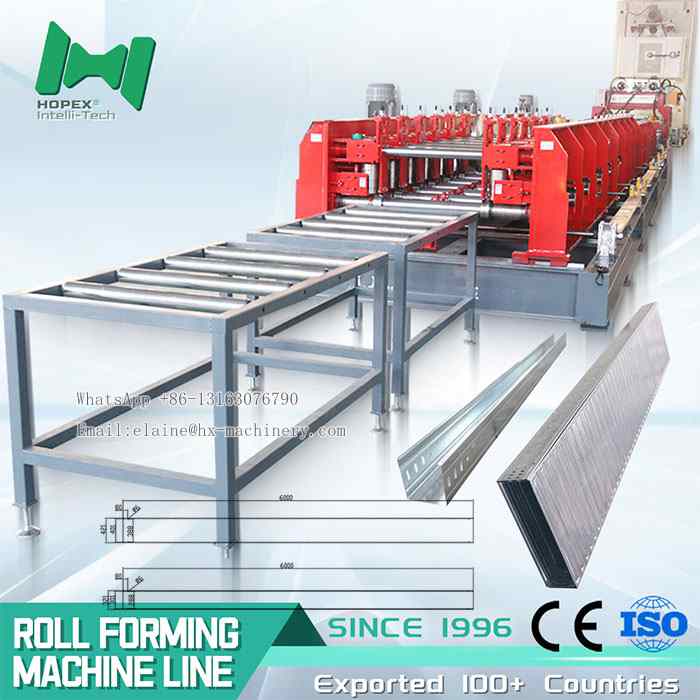

HOPEX Fully Automatic cable tray production line
HOPEX Fully Automatic cable tray production line is high-performance industrial equipment for mass production of steel cable trays. It integrates continuous rolling and online punching into a one-stop automated process, ensuring high precision and efficiency.
Contact us for a quote on cable tray machines！
HOPEX Fully Automatic cable tray production line with robust structure and premium components, it features stable performance, easy operation and flexible adaptability for both standard and customized production, helping enterprises improve productivity and market competitiveness.
The composition of the machine
Active feeding → Leveling → Punching → Cutting → Conveying platform → Forming → Discharging

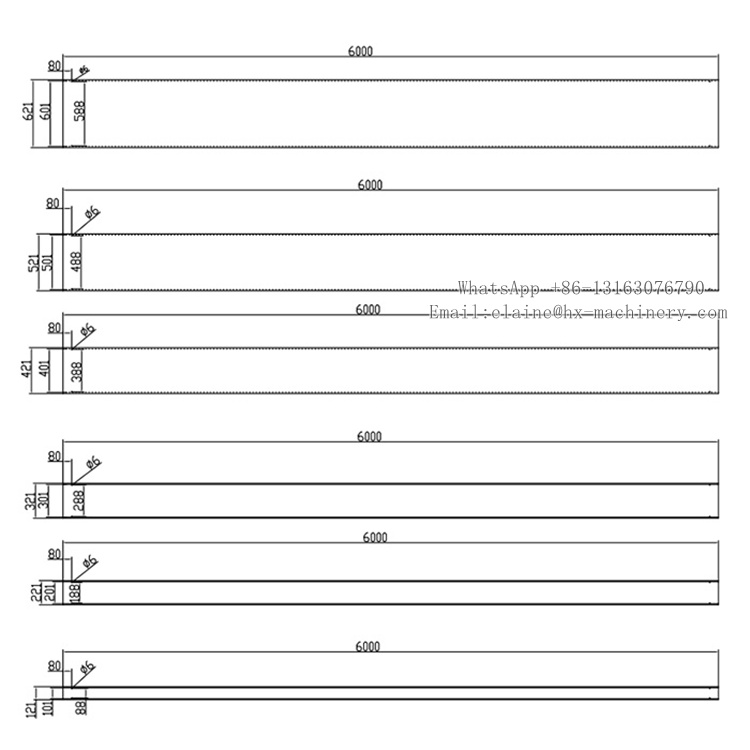

Picture of product profile drawing
HOPEX Fully Automatic cable tray production line for Trough Trays Technical Parameter
| Uncoiler |
Hydraulic expansionMotorized uncoiling functionInner diameter expansion range: φ460-520 mm |

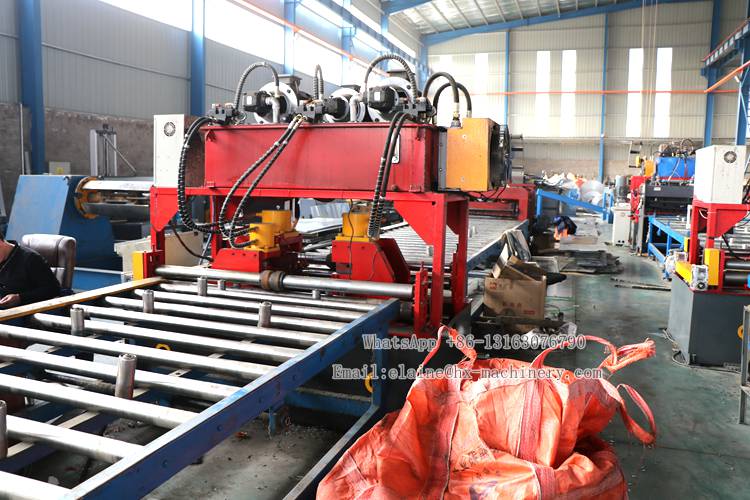

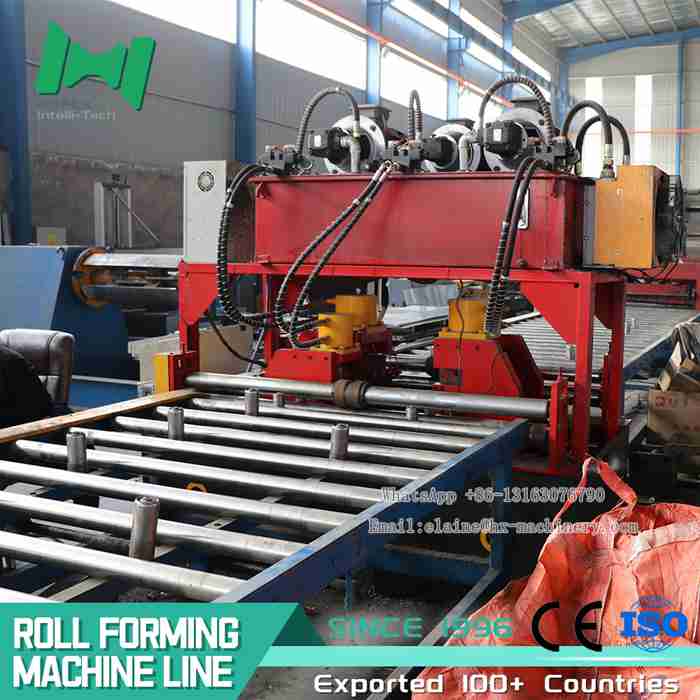

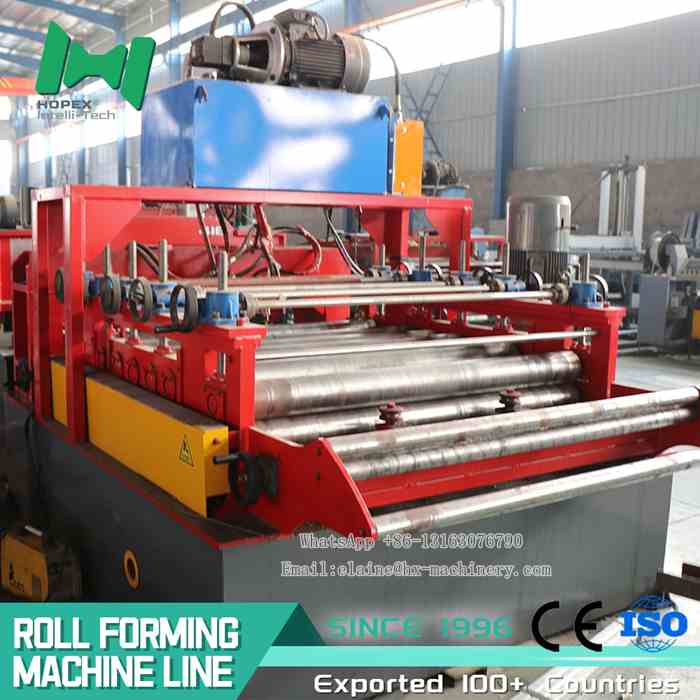

| Leveling, Punching & Cutting All-in-one Machine | 7-rollerLifter linkagePunching (1 set of dies) |

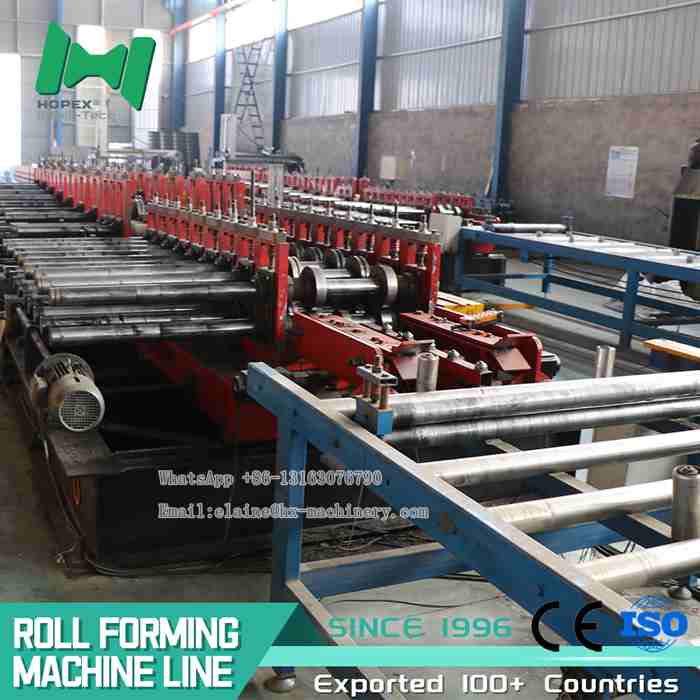

| Small-edge Roll Forming Section | Inner-folding small edge:6-roller roll formingSmall-edge leveling |
| Rear Section of Roll Forming Machine | Opposed roll forming |
| High-speed Platform | 3-meter roller-type feeding table (1 unit) |

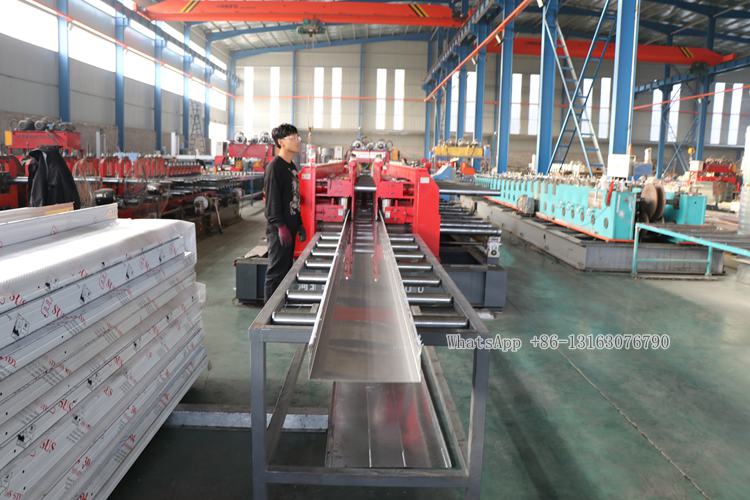

| Discharge Platform | 3-meter platform (1 unit)Roller-type |
| Hydraulic Station | Multiple solenoid valvesSolenoid |
| Forming Dimensions | 400/100 |
| Roll Forming Thickness | 0.8–1.5 mm |
| Roll Forming Speed | 8–16 m/min |
| Number of Forming Passes | 26 passes |
Pictures of HOPEX Fully Automatic Cable Tray Forming Machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
