Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

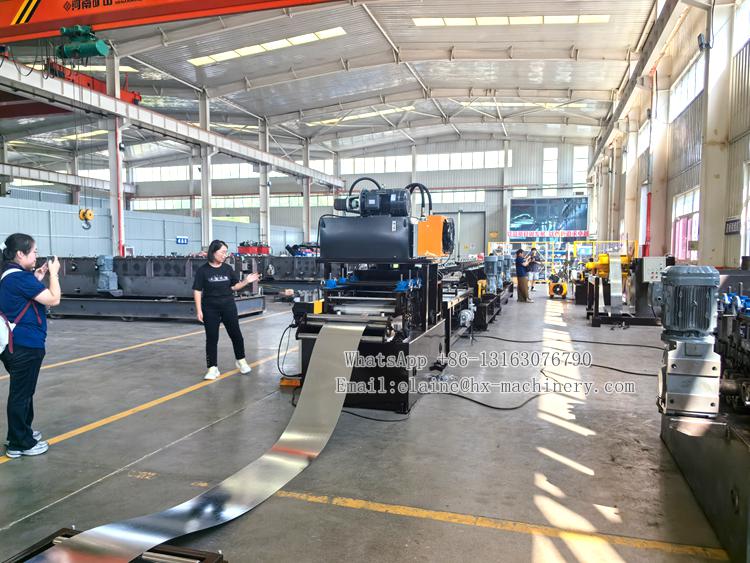

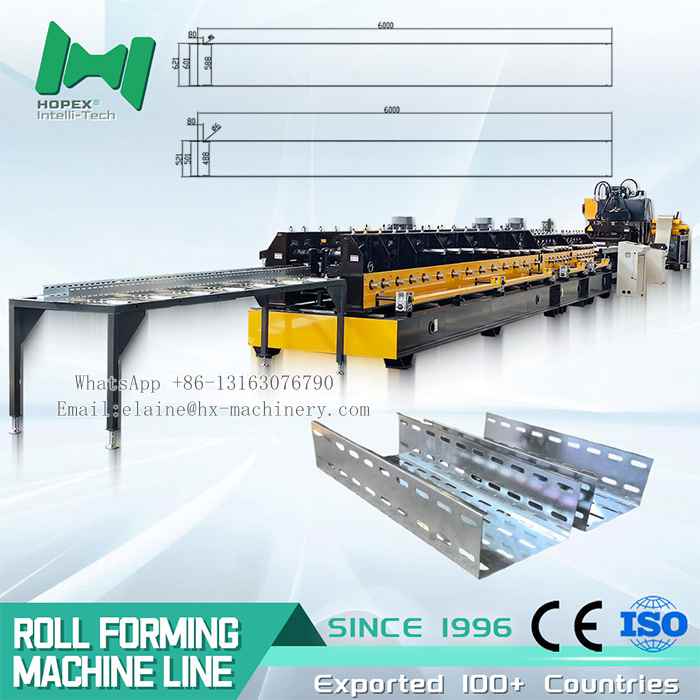

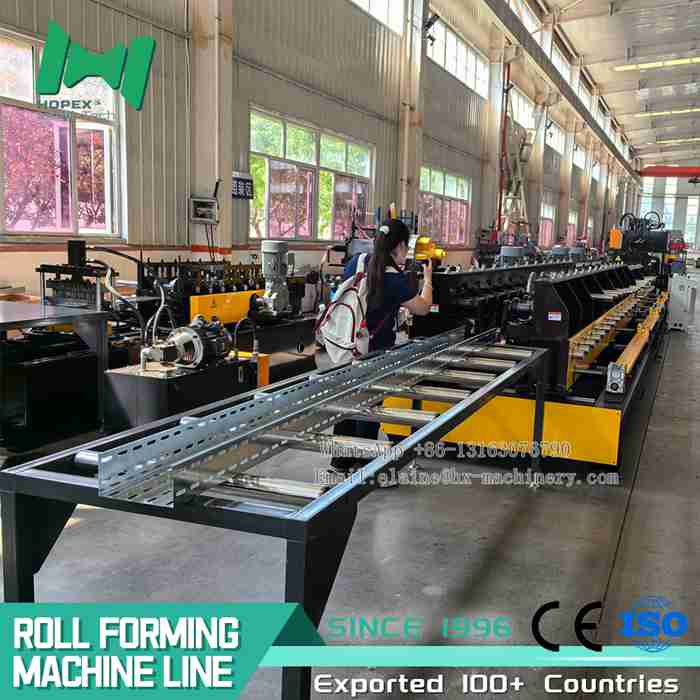

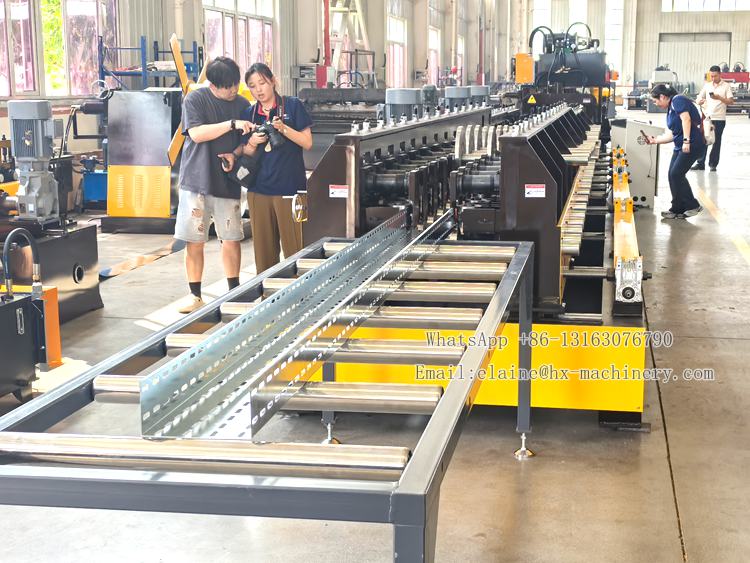

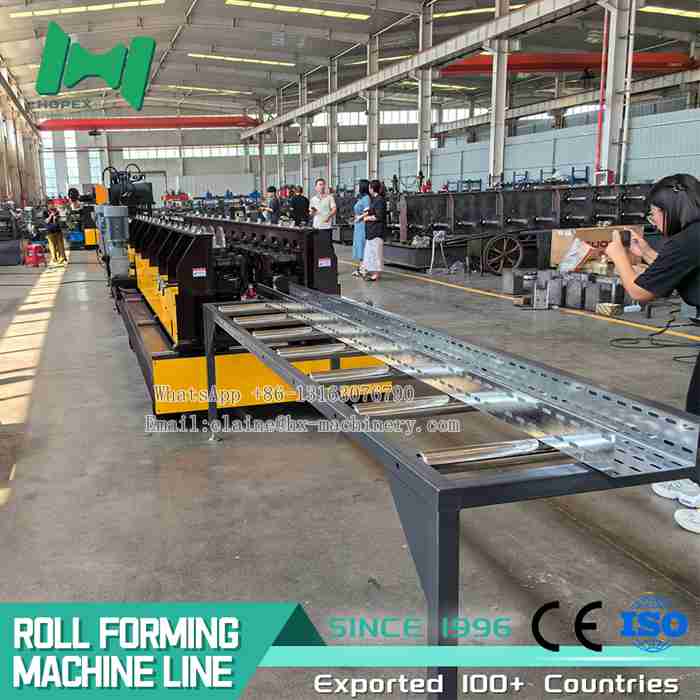

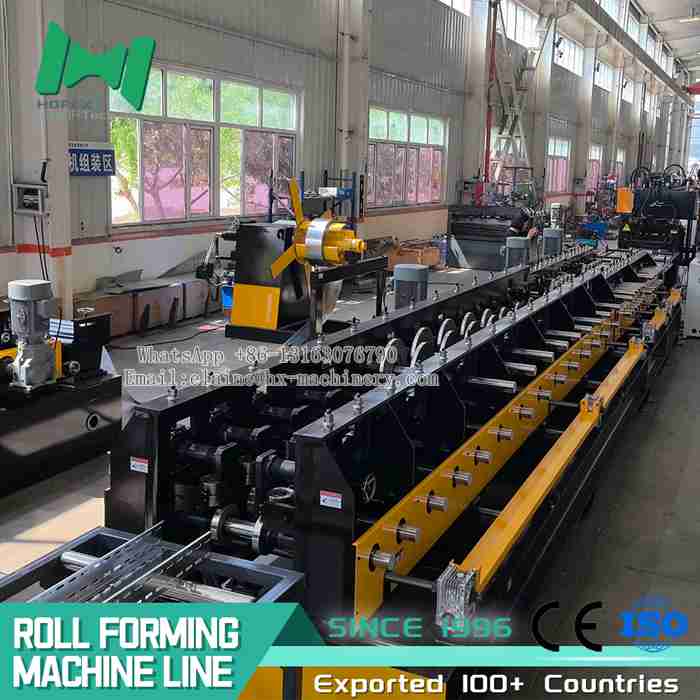

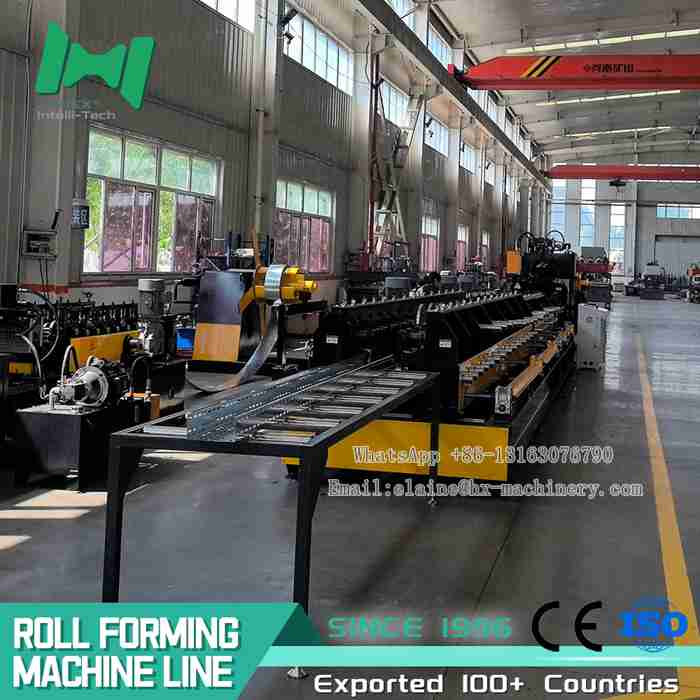

HOPEX Fully Automatic Cable Tray Forming Machine
HOPEX Fully Automatic Cable Tray Forming Machine is a cutting-edge industrial solution designed for efficient, high-precision production of steel cable trays. Built with robust engineering, it integrates continuous rolling and online punching to deliver a seamless, one-stop manufacturing experience, ensuring consistent quality and smooth workflow for mass production.
HOPEX Fully Automatic Cable Tray Forming Machine's smart design optimizes workshop space and simplifies operation, while premium components ensure long-lasting stability even in demanding industrial environments. Whether for standard or customized cable tray production, this machine offers reliable performance and flexible adaptability to meet diverse project requirements, making it an ideal choice for businesses aiming to boost productivity and product quality.
The composition of the machine

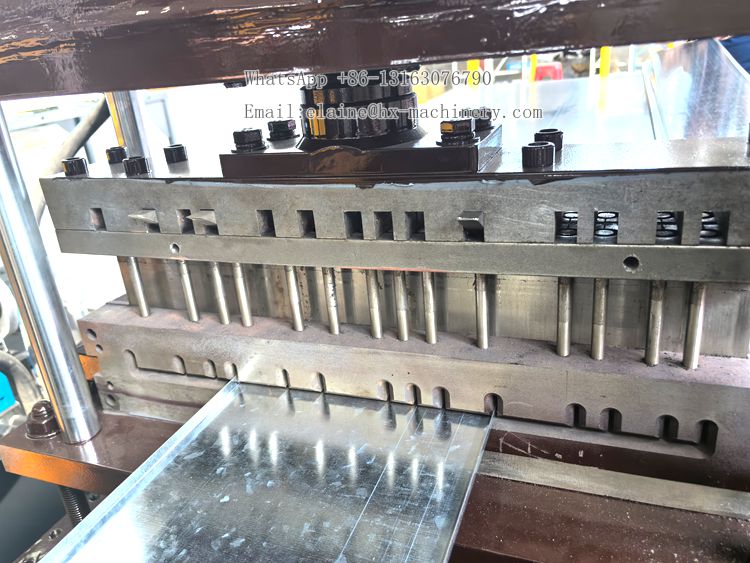

Active feeding → Leveling → Punching → Cutting → Conveying platform → Forming → Discharging

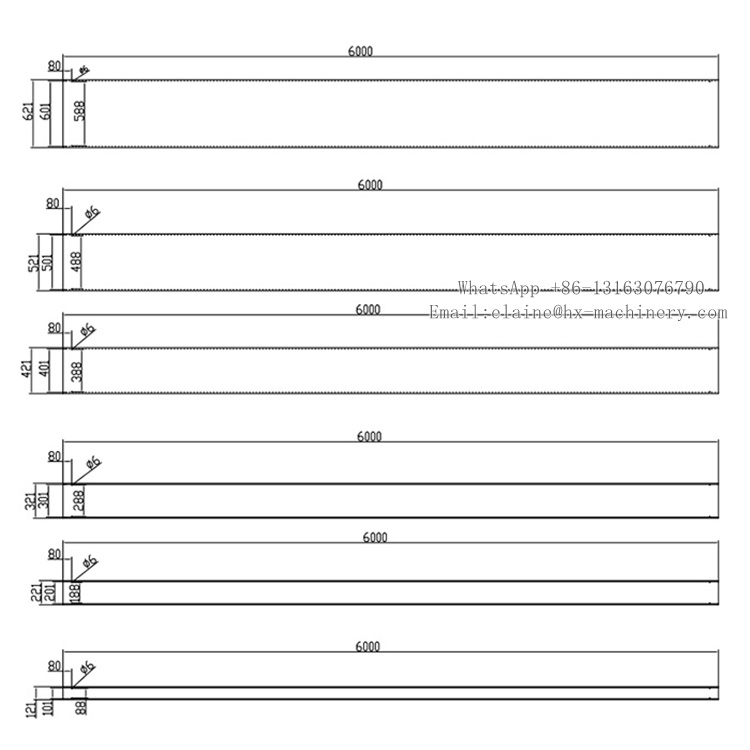

Picture of product profile drawing
Contact us for a quote on cable tray machines！
Cable Tray Roll Forming Machine for Trough Trays Technical parameter
| Uncoiler |
Hydraulic expansionMotorized |

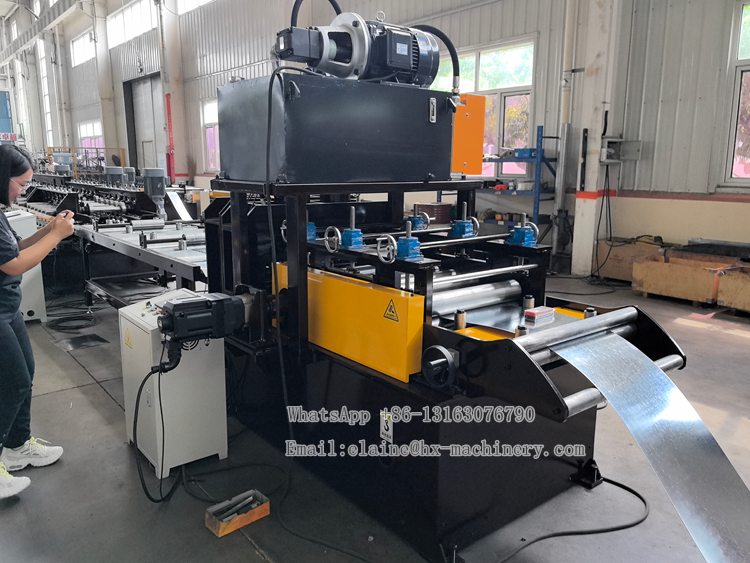

| Leveling, Punching & Cutting All-in-one Machine |
7-rollerLifter linkagePunching (1 set of dies)Cutting 4 KW servo motor |

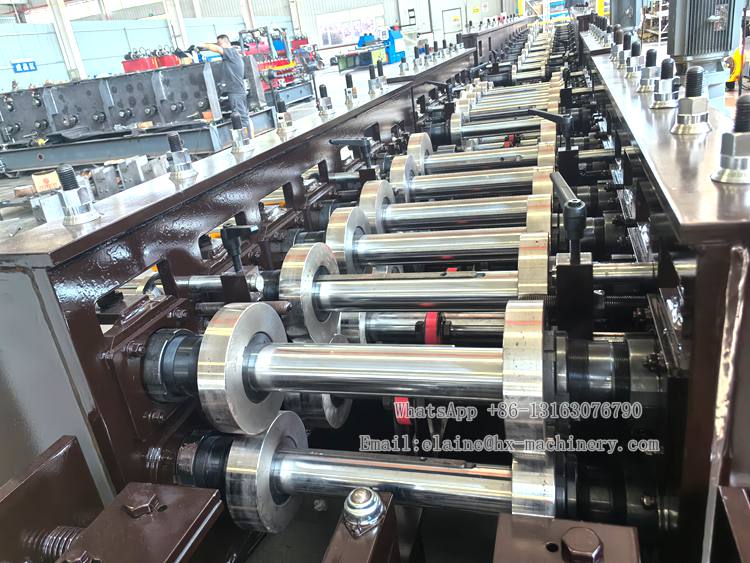

| Small-edge Roll Forming Section |
Inner-folding small edge:6-roller roll formingSmall-edge leveling Main motor power: 5.5 KW |
| Rear Section of Roll Forming Machine |
Opposed roll forming Main motor power: 5.5 KW |
| High-speed Platform | 3-meter roller-type feeding table (1 unit) |
| Discharge Platform | 3-meter platform (1 unit)Roller-type |
| Hydraulic Station | Multiple solenoid |
| Forming Dimensions | 400/100、400/50 |
| Roll Forming Thickness | 0.8–1.5 mm |
| Roll Forming Speed | 8–16 m/min |
| Number of Forming Passes | 26 passes |
Contact us for a quote on cable tray machines！
Pictures of HOPEX Fully Automatic Cable Tray Forming Machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
