Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

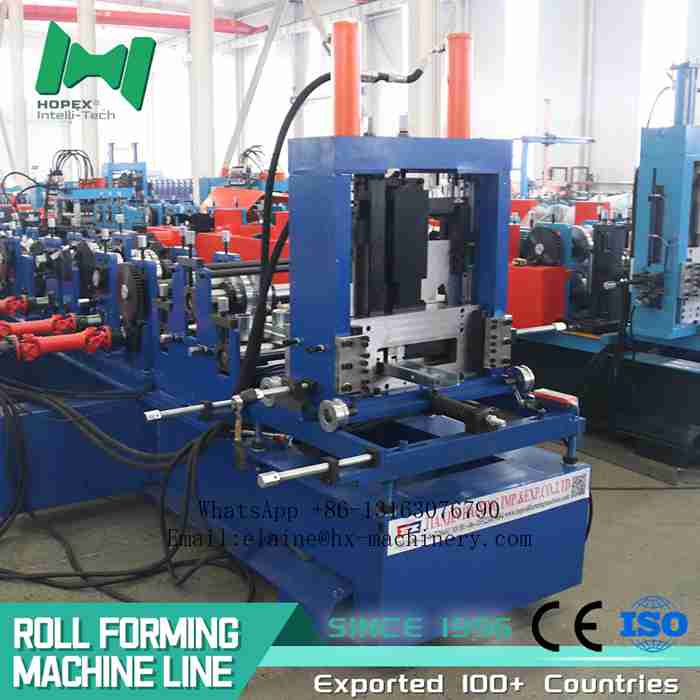

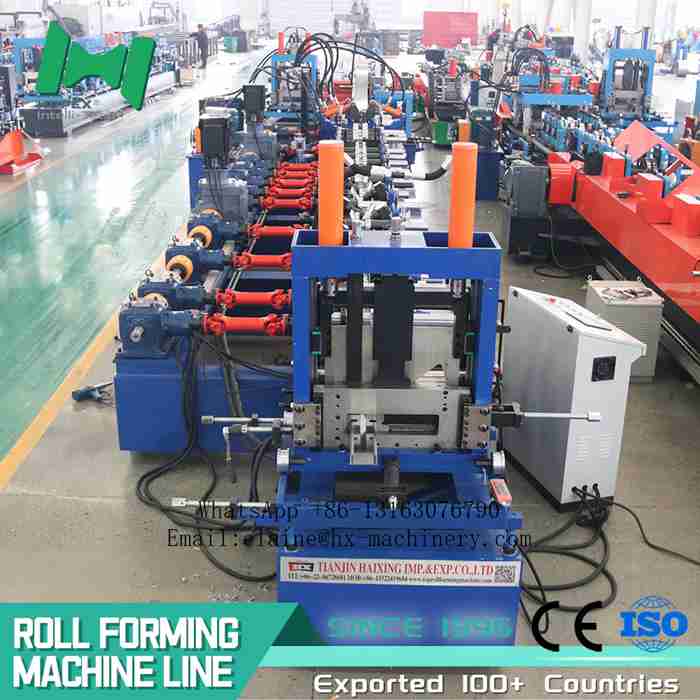

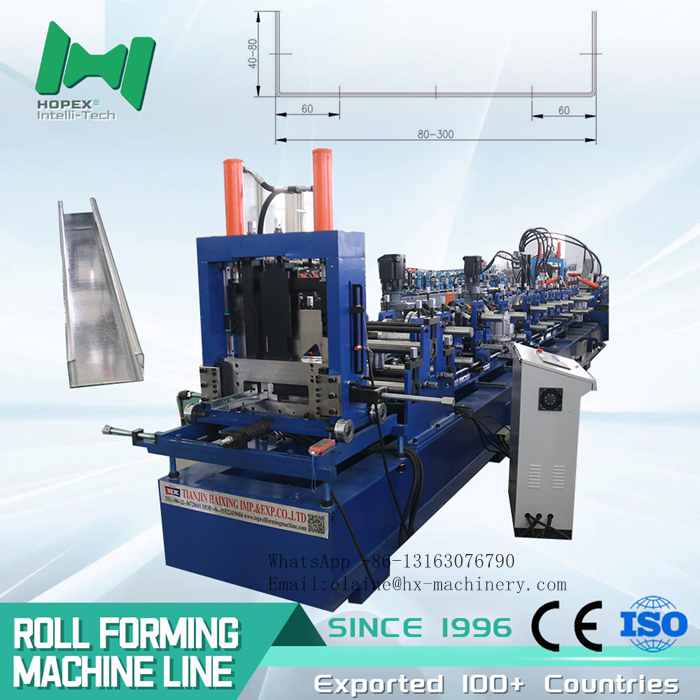

HOPEX solar bracket roll forming machine
HOPEX solar bracket roll forming machine boasts top-tier performance and user-friendly design. With smart one-click mold switching, it ensures efficient production and precise shaping. Crafted with high-quality materials and reliable components, it delivers stable operation and durable use. Supporting bilingual control, it suits global needs.
Contact us for a quote on cable tray machines！

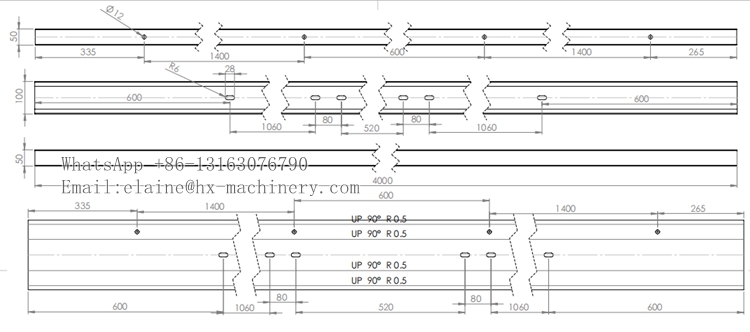

Picture of product profile drawing

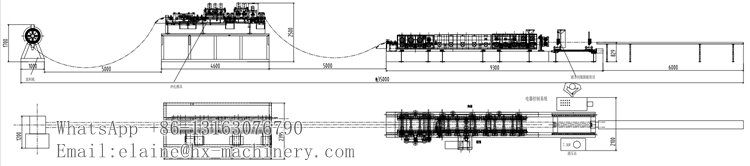

The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging
HOPEX solar bracket roll forming machine for Trough Trays Technical parameter
| Item Name | Specification |
| Frame | 450H Steel |
| Middle Plate | 38mm Welded Frame Structure |
| Forming Rows | 15 forming rows, equipped with 4 mold-changing modules |
| Roller Material | Main roller: GCr15 (processed in Wuxi) |
| Main Shaft | 80mm solid shaftHigh-quality 45# steel: tempered (HB210-230) + rough turned |
| Sliding Sleeve | 45# steel: tempered (HB210-230) + finish turned |
| Rib Pressing | Straight rib; automatic mold switching via computer |
| Straightening | 1 upper + 2 lower straighteners (one straightening unit) |
| Feeding | Equipped with transmission |
| Production Speed | High speed: 28m/min |
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Contact us for a quote on cable tray machines！

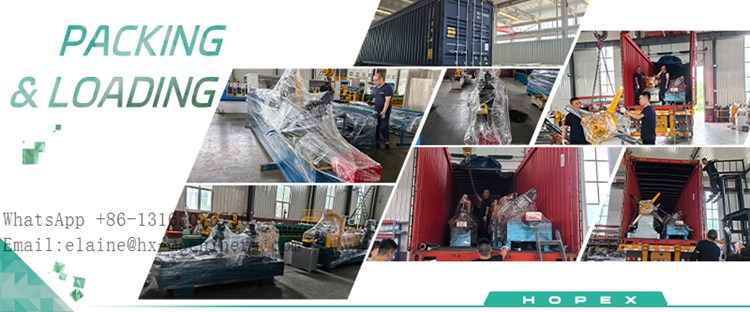

Pictures of HOPEX cable tray manufacturing machine in india packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
