Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

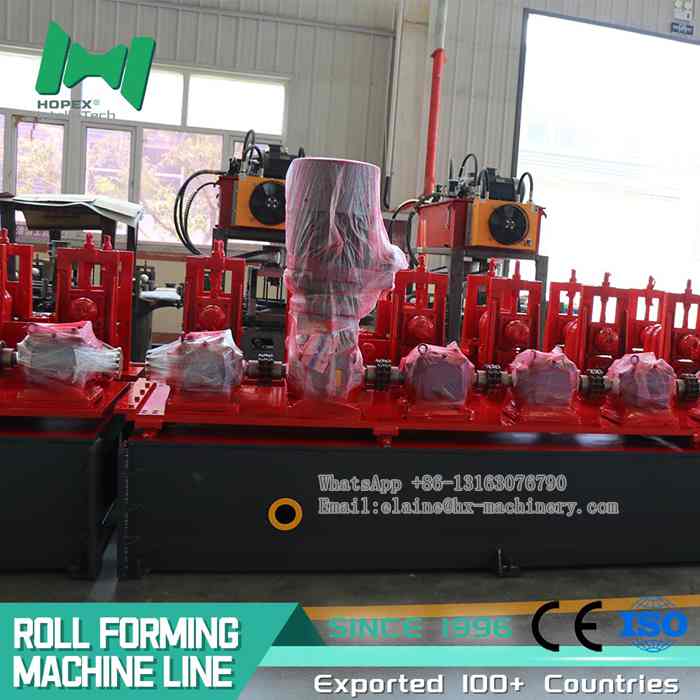

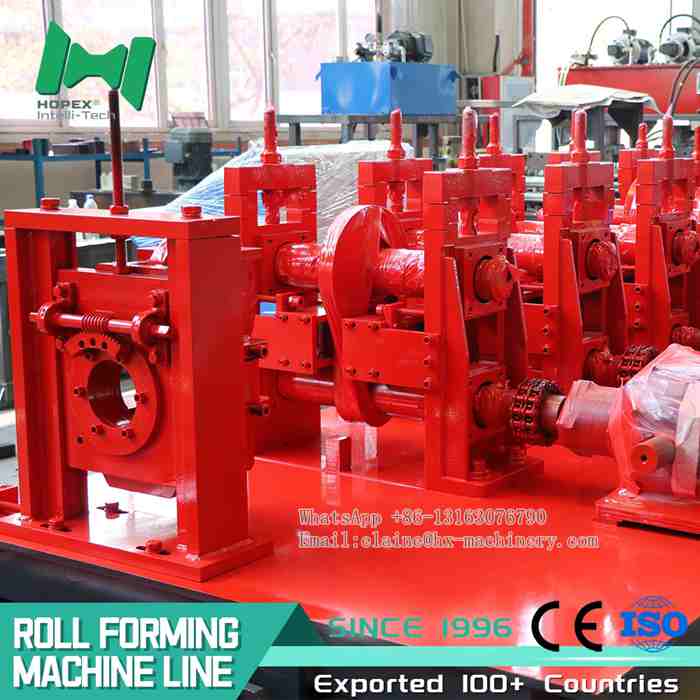

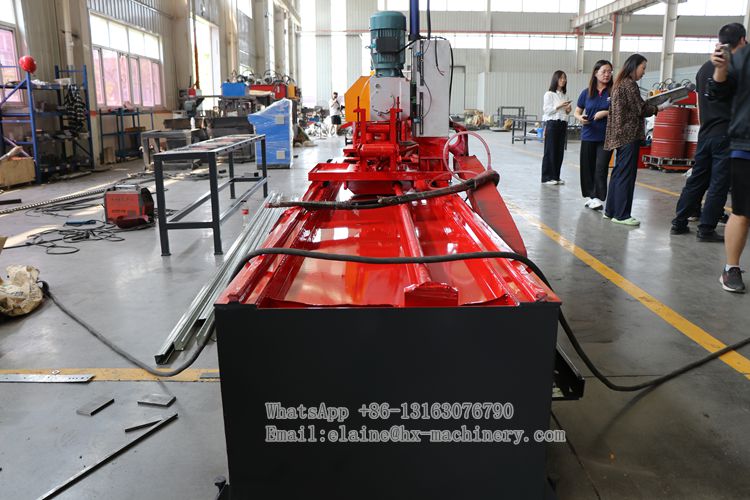

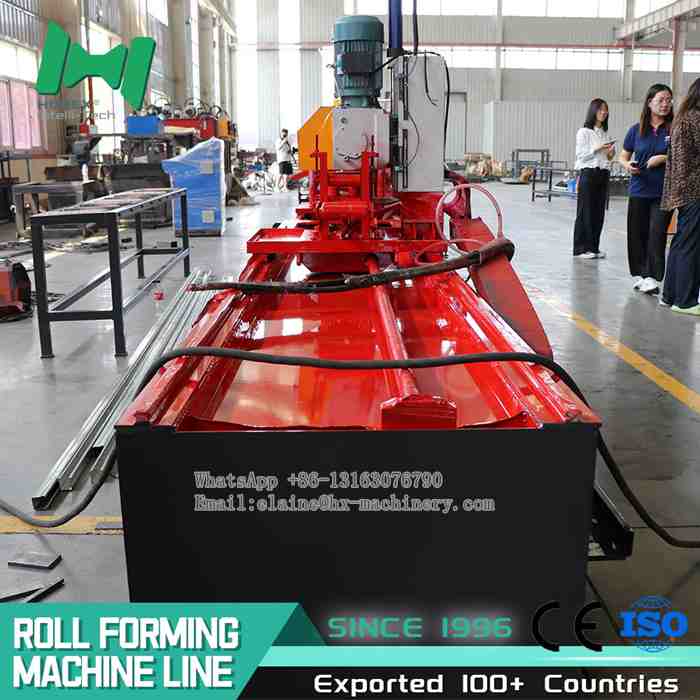

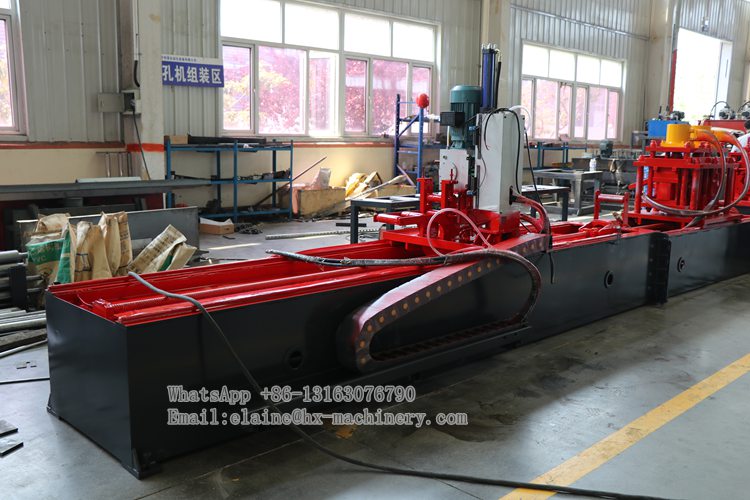

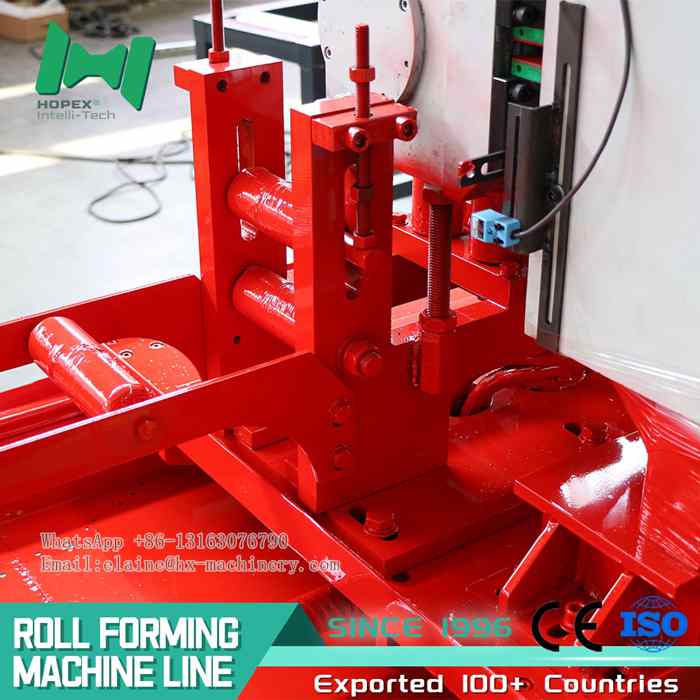

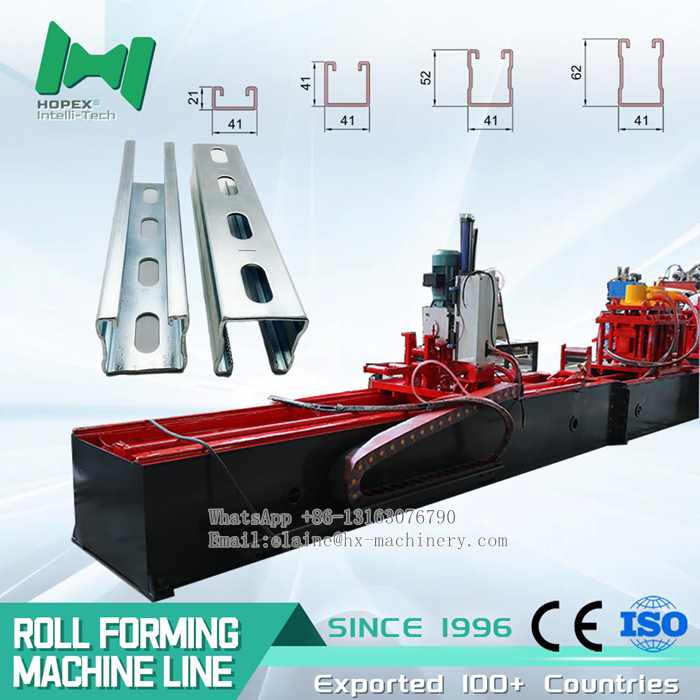

HOPEX photovoltaic bracket roll forming machine
Boost productivity with this HOPEX photovoltaic bracket roll forming machine. It offers one-click mold change, reliable performance, and bilingual controls. Delivers smooth, accurate C/U-shaped profiles ideal for solar projects worldwide.
\
Contact us for a quote on cable tray machines！
The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

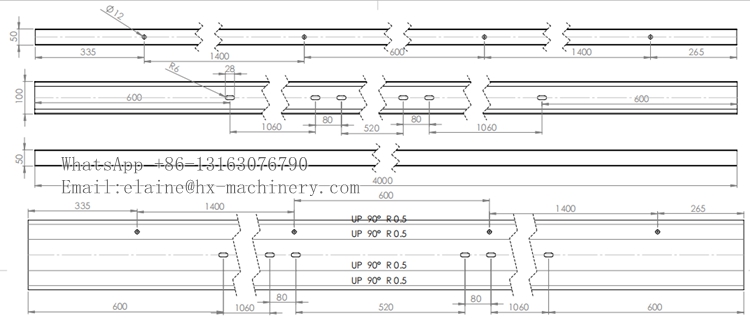

Picture of product profile drawing
HOPEX photovoltaic bracket roll forming machine for Trough Trays Technical parameter
| Name | Optional Types |
| Uncoiler Frame | Hydraulic expanding core |
| Leveling Section | 5 rolls |
| Main Machine Section | Forming rolls: 23 forming rollers |
| Servo Non-stop Punching | Dual-module reverse punching |
| Tracking Cutting | Circular saw cutting |
| Discharging Platform | 2 sets of 3m platforms (roller type) |
| Roll Press Thickness | 1.5–2.5 mm |
| Roll Press Speed | 10–15 m/min |
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Contact us for a quote on cable tray machines！
Pictures of HOPEX photovoltaic bracket roll forming machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
