Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

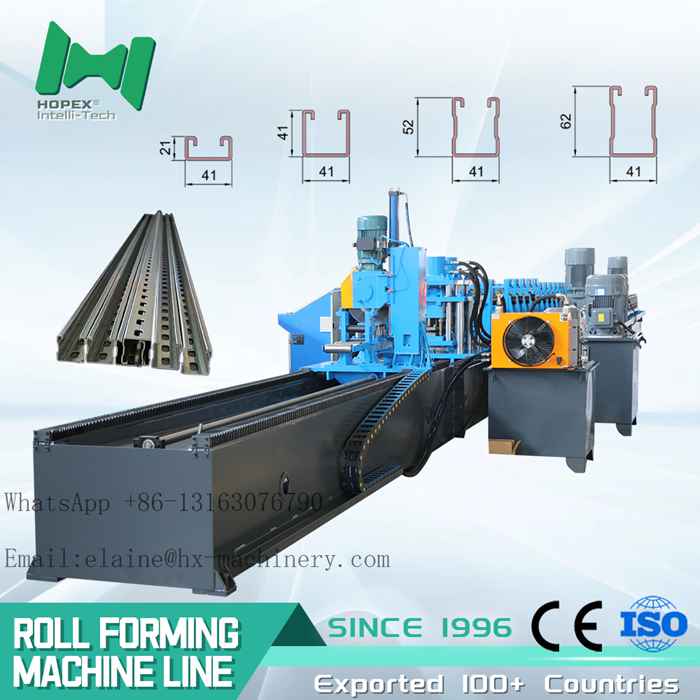

HOPEX roll forming machine for solar structure
HOPEX roll forming machine for solar structure features one-click smart mold switching for maximum efficiency. Its high-quality build ensures stable, long-lasting operation, while the bilingual control system caters to global users. Produces precise, burr-free profiles that meet strict industry standards.
Contact us for a quote on cable tray machines！
Picture of product profile drawing

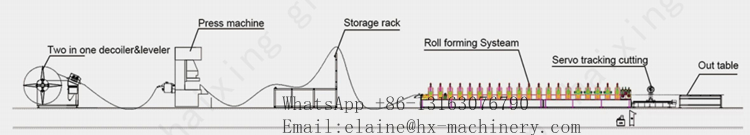

The composition of the machine
Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging
HOPEX roll forming machine for solar structure for Trough Trays Technical parameter
| Item Name | Specification |
| Frame | 450H Steel |
| Middle Plate | 38mm Welded Frame Structure |
| Forming Rows | 15 forming rows, equipped with 4 mold-changing modules |
| Roller Material | Main roller: GCr15 (processed in Wuxi) |
| Main Shaft | 80mm solid shaftHigh-quality 45# steel: tempered (HB210-230) + rough turned |
| Sliding Sleeve | 45# steel: tempered (HB210-230) + finish turned |
| Rib Pressing | Straight rib; automatic mold switching via computer |
| Straightening | 1 upper + 2 lower straighteners (one straightening unit) |
| Feeding | Equipped with transmission |
| Production Speed | High speed: 28m/min |
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
Contact us for a quote on cable tray machines！
Pictures of HOPEX roll forming machine for solar structure packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
