HOPEX pallet rack roll forming machine

Product ID : HP-pallet rack roll forming machine

Product Tags :

Product Attributes :

Develivery time:60 working days

Model:HOPEX-Perforated cable tray

Payment:30% T/T deposit,70% balance before shipping

Warranty :1 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

WhatsApp: 0086 13163076790

E-mail: elaine@hx-machinery.com

Product Description

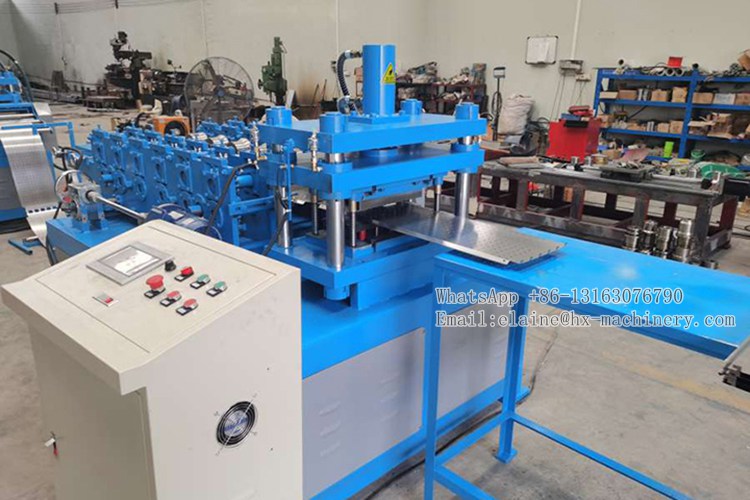

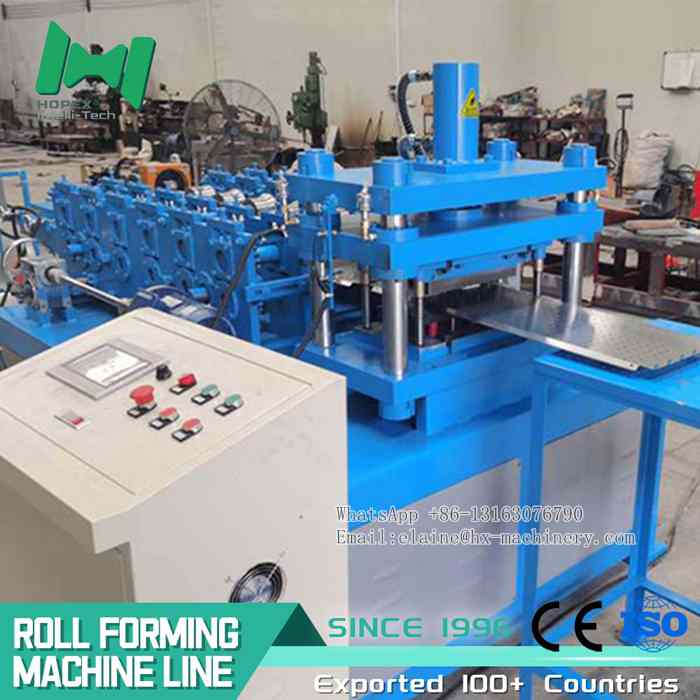

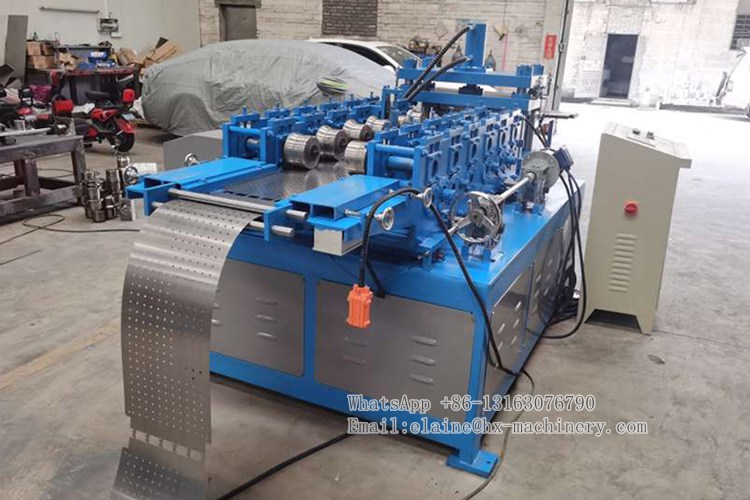

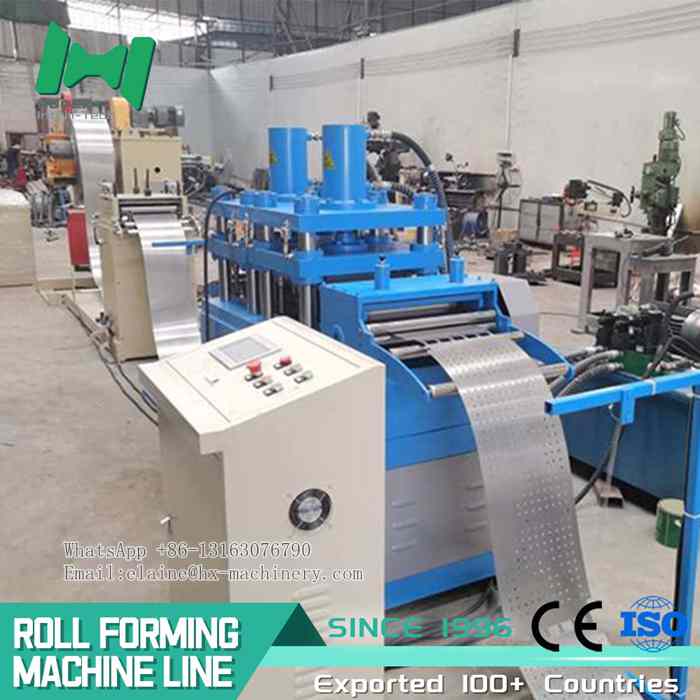

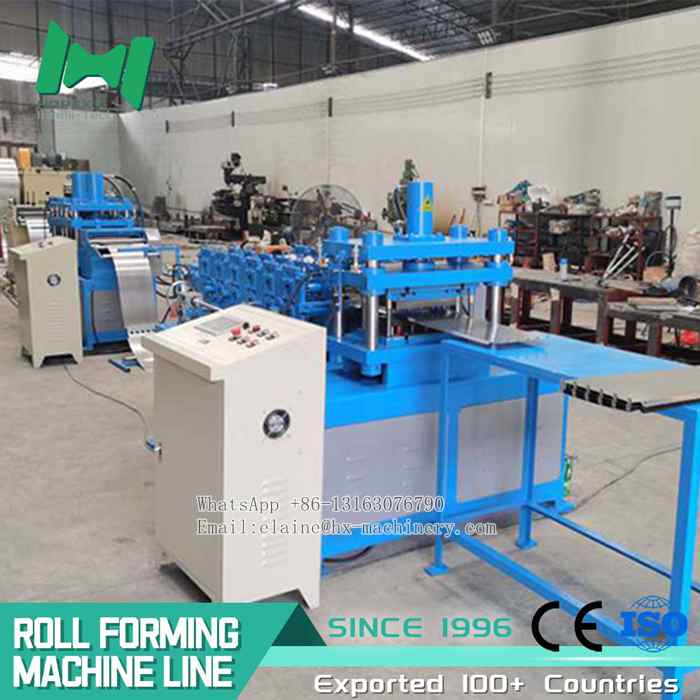

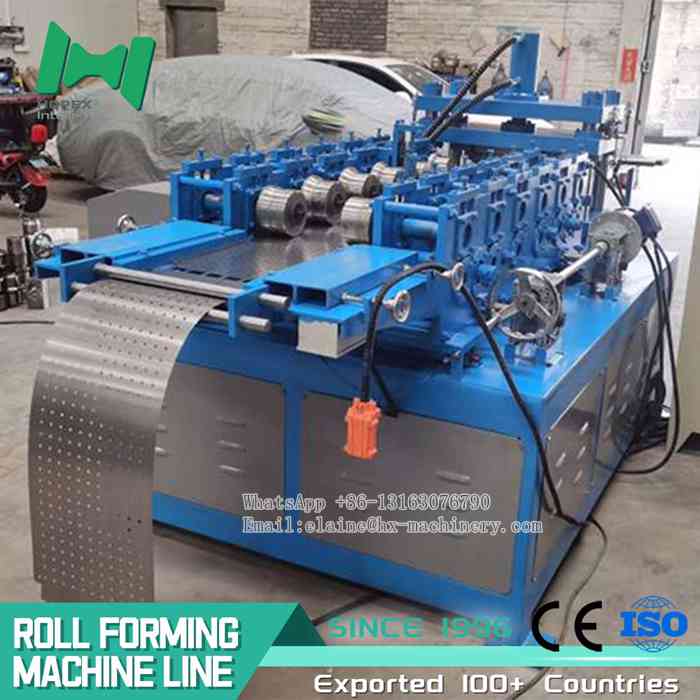

HOPEX pallet rack roll forming machine

HOPEX pallet rack roll forming machine is built for industrial-grade reliability and versatility, supporting the manufacturing of uprights, beams, and diagonal braces with unmatched consistency. Leveraging precision forming technology and intelligent servo control, it delivers clean cuts, uniform profiles, and minimal material waste.

Contact us for a quote on cable tray machines！

The composition of the machine

Coil Uncoiler -- Feeding and Leveling -- Forming -- Servo Tracking Punching -- Servo Tracking Saw Cutting -- Discharging

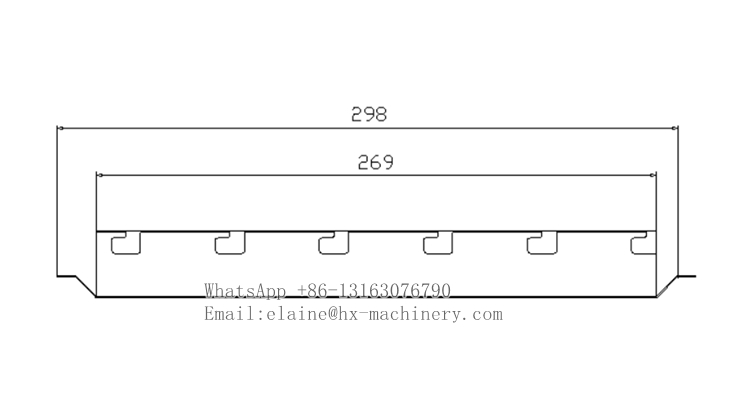

Picture of product profile drawing

HOPEX pallet rack roll forming machine for Trough Trays Technical parameter

Product Name	shelves panel roll forming machine
Main motor power	15 kw（Siemens）
Hydraulic station	Vane pump, 7.5 kw
Produce speed	20 m/min
Shaft material	45# Steel
Brand of electrical control cabinet	Phase sequence protector Independent cabinet
Touch screen	Siemens or customized according to customer requirements
Rolling materials	Cr12, heat treatment HRC58-62℃
Cutting blade material	Hydraulic back shear (three blades) cutter material Cr12MoV
Roller diameter	Φ75 mm
Voltage	380v 60hz 3p be customized
Feeding thickness	1.5-2.0 mm
Rows	14
Board height	600-900 mm

Contact us for a quote on cable tray machines！

Our customers

HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
