Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

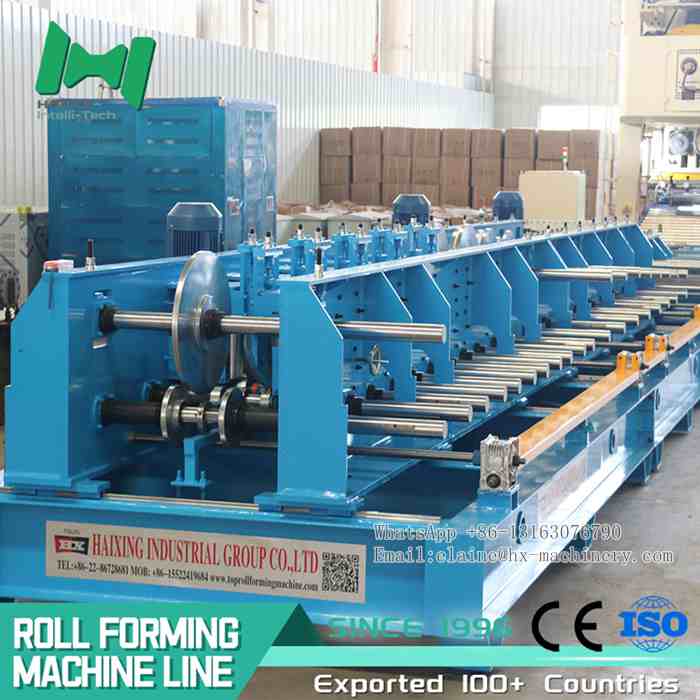

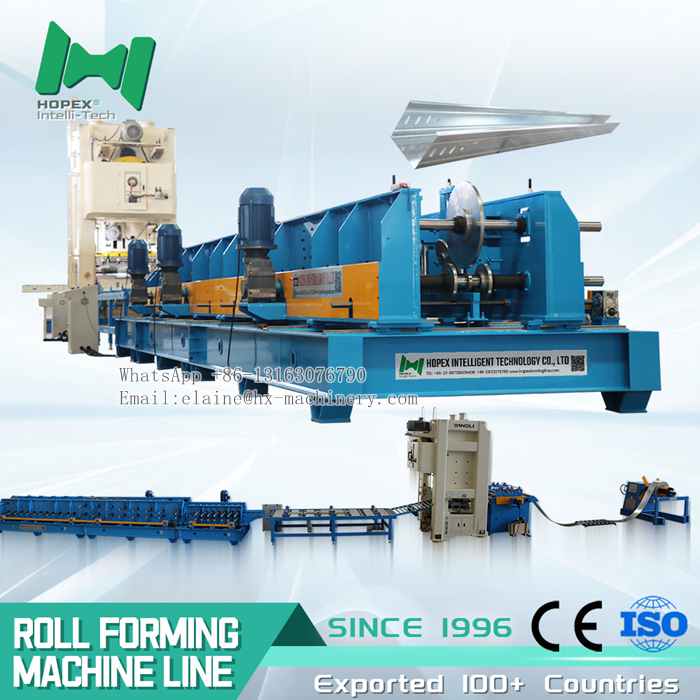

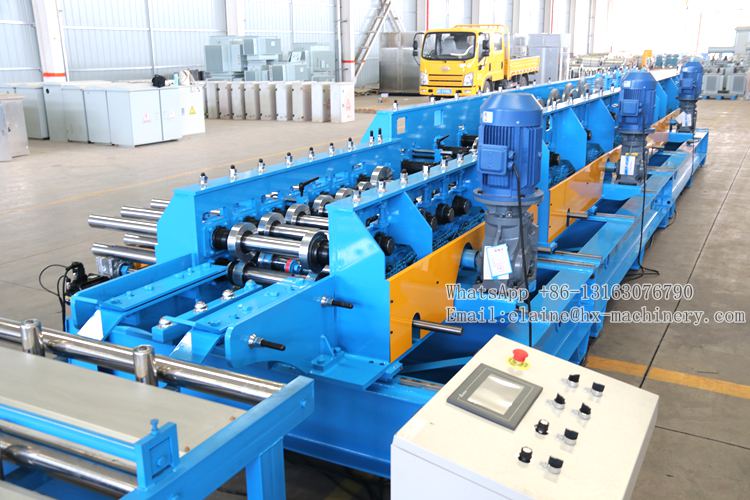

HOPEX Fully Automatic perforated cable tray roll forming machine
HOPEX Fully Automatic perforated cable tray roll integrates high precision and ultra-stable operation performance, built with a rugged and durable heavy-duty mechanical structure. It can run continuously for a long time without failure, ensuring stable forming quality and consistent precision of cable trays, providing reliable equipment support for non-stop mass production in industrial workshops and guaranteeing efficient and stable operation of production lines.
Contact us for a quote on cable tray machines！

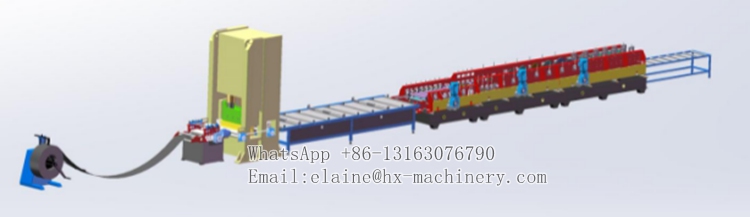

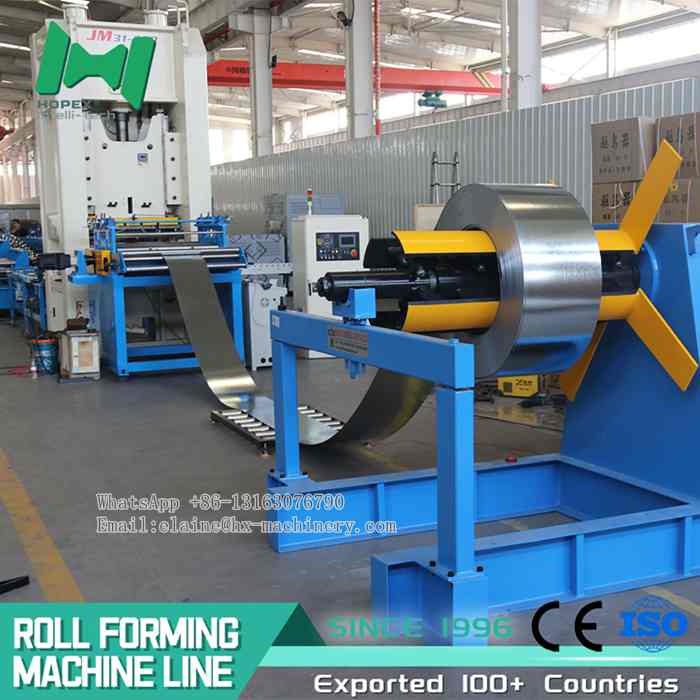

The composition of the machine
Feeding → Loading → Molding → Punching → Cutting → Discharging

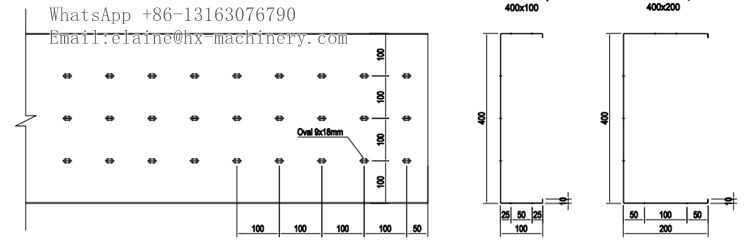

Picture of product profile drawing
HOPEX Fully Automatic perforated cable tray roll forming machine for Trough Trays Technical parameter

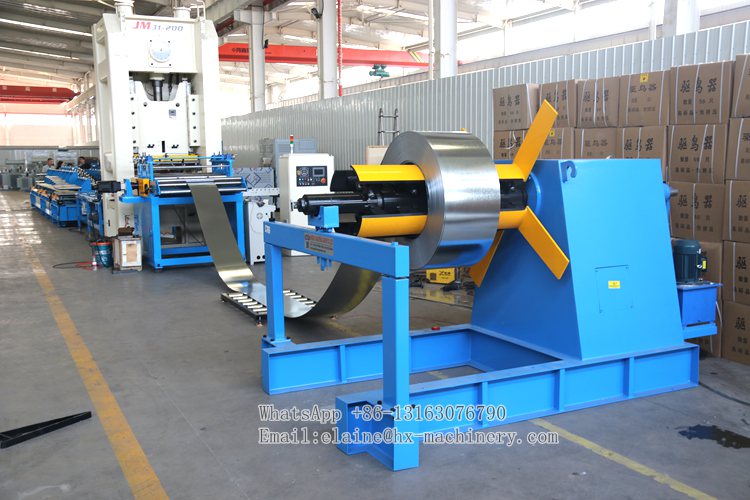

| Decoiler |
1.Max load capacity: 6T 2.Max coil width: 150-1100mm 3.Coil inner diameter: φ460-520 mm 4.Coil outer diameter: ≤1600mm |
| Leveling & Servo Feeding All-in-One Machine |
1.8-roller leveling 2.Leveling roller diameter: 90mm 3.Leveling motor: 4KW |

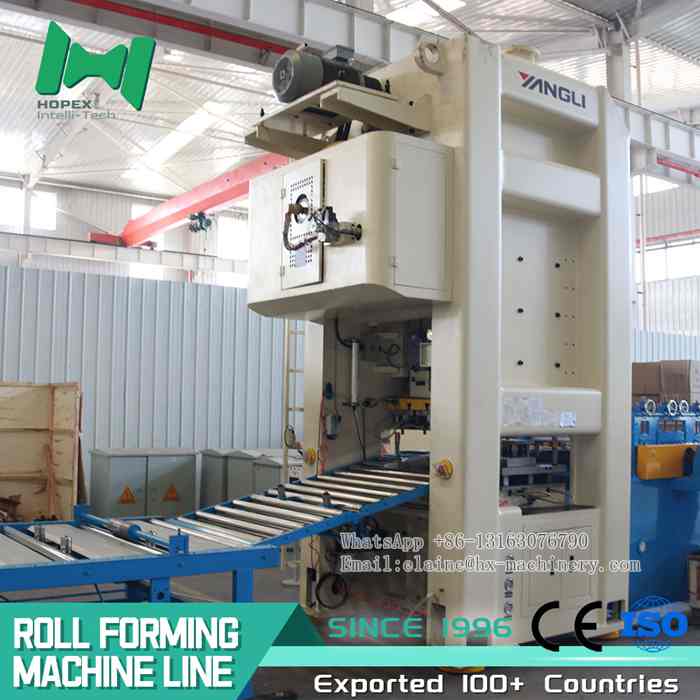

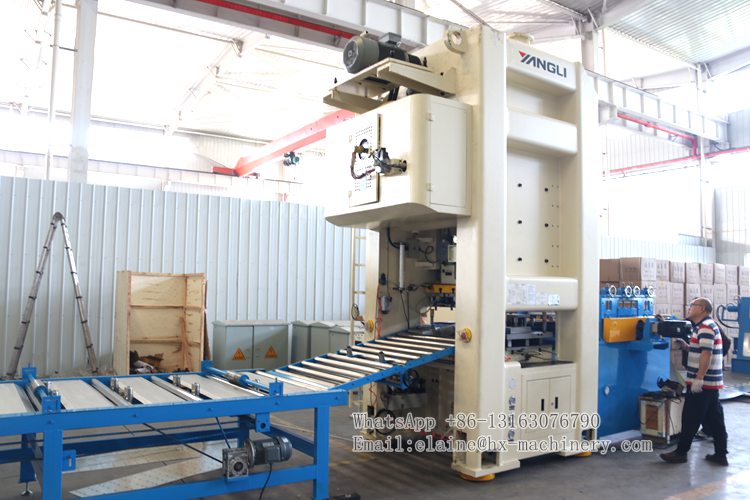

| Punch Press (with Force) | 200-ton punch press |
| High-speed Platform |
1.Heavy-duty roller feeder: 6 meters 2.Main motor power: 1.5KW |

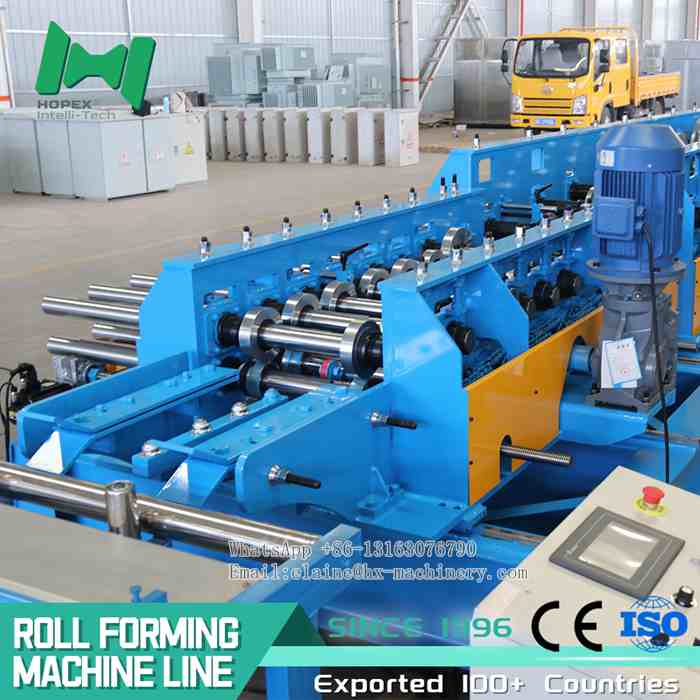

| Roll Forming Section | Shaft diameter: φ65mm |
| Discharging Platform | 3-meter platform |
| Hydraulic Station | Multi-group solenoid valve |
| Forming Specification | 600×300、600×100、500×300 |
| Roll Forming Thickness | 0.7–2.0mm |
| Roll Forming Speed | 8-12 meters per minute |
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.

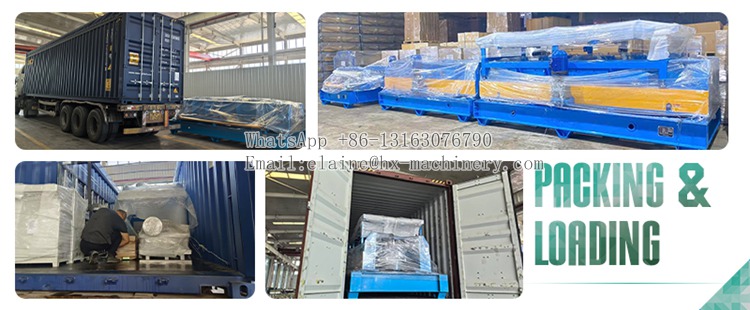

Pictures of HOPEX Fully Automatic Cable Tray roll Forming Machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
