Develivery time:60 working days
Model:HOPEX-Perforated cable tray
Payment:30% T/T deposit,70% balance before shipping
Warranty :1 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
WhatsApp: 0086 13163076790
E-mail: elaine@hx-machinery.com

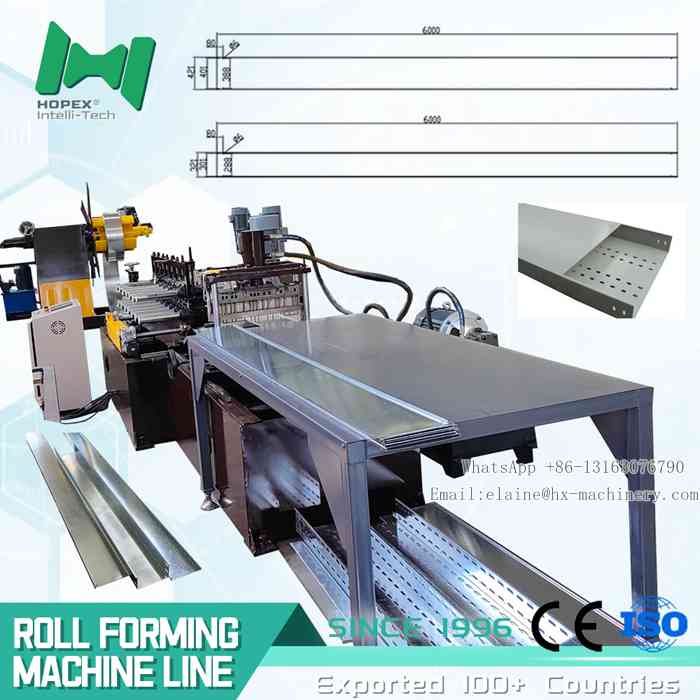

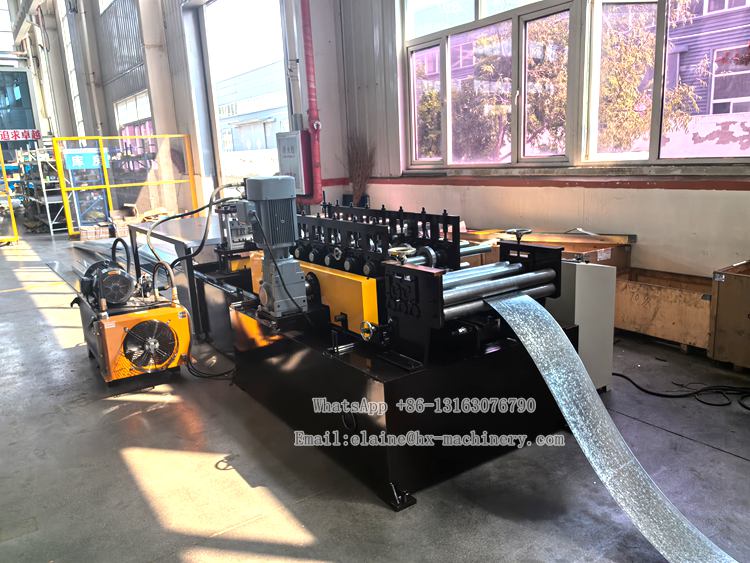

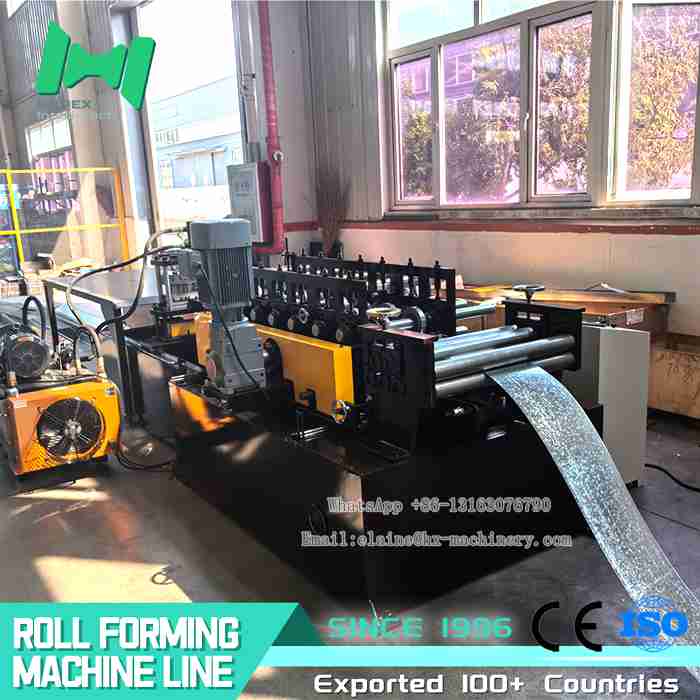

HOPEX Fully Automatic cable tray cover making machine
HOPEX Fully Automatic Cable Tray cover making Machine is a cutting-edge solution for efficient and high-precision steel cable tray manufacturing. It combines continuous rolling, online punching, cutting and forming functions in one, realizing a fully automated production workflow that ensures consistent product quality and smooth operation. The machine features a user-friendly design for easy operation and maintenance, while its durable construction guarantees long-term stable running.
HOPEX Fully Automatic cable tray cover making machine is highly adaptable to different specifications of cable trays, supporting both standard production and customized orders according to customer requirements. Suitable for various industrial scenarios, this machine can significantly boost production efficiency and reduce production costs, making it a reliable choice for manufacturers worldwide.
Contact us for a quote on cable tray machines！
Cable Tray Making Machine for Cover machine Technical Parameter

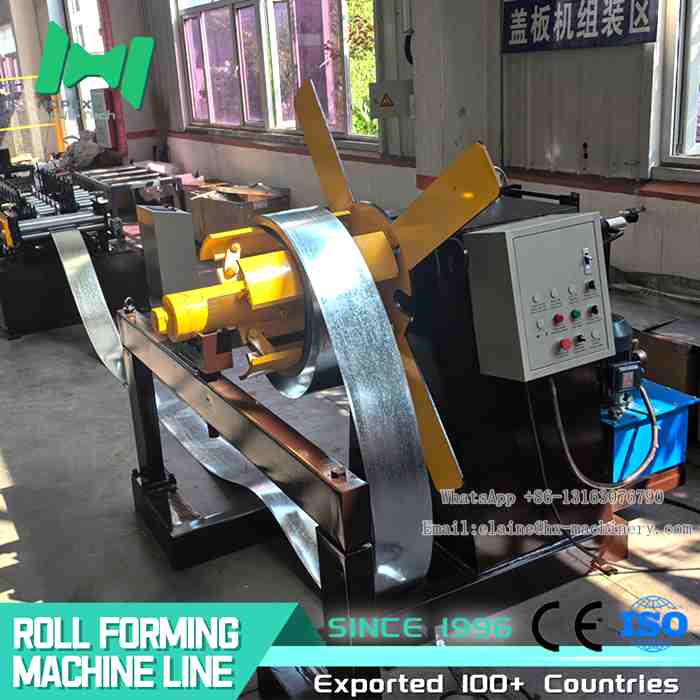

| Uncoiler |
Hydraulic expansionMotorized uncoiling functionInner |
| Leveling, Punching & Cutting All-in-one Machine |
7-rollerLifter linkagePunching (1 set of dies)Cutting4 KW |
| Small-edge Roll Forming Section | Inner-folding small edge:6-roller roll formingSmall-edge leveling |
| Rear Section of Roll Forming Machine | Opposed roll forming |
| High-speed Platform | 3-meter roller-type feeding table (1 unit) |
| Discharge Platform | 3-meter platform (1 unit)Roller-type |
| Hydraulic Station | Multiple solenoid |
| Forming Dimensions |
400/100、400/50、300/100 300/50、200/100、200/50 |
| Roll Forming Thickness | 0.8–1.5 mm |
| Roll Forming Speed | 8–16 m/min |
| Number of Forming Passes | 26 passes |

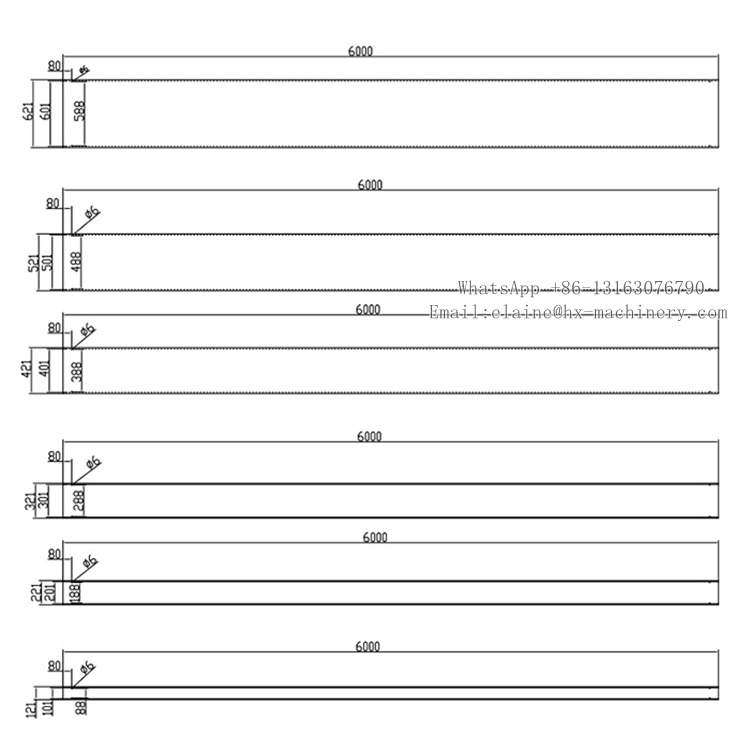

Picture of product profile drawing

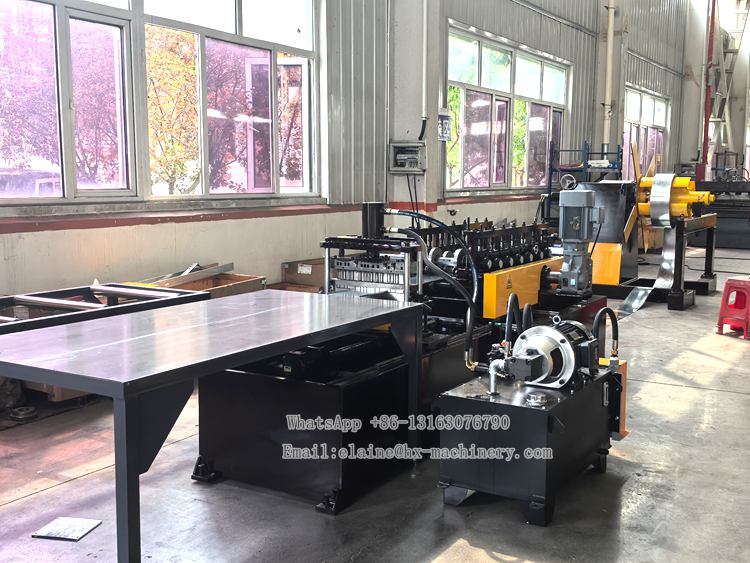

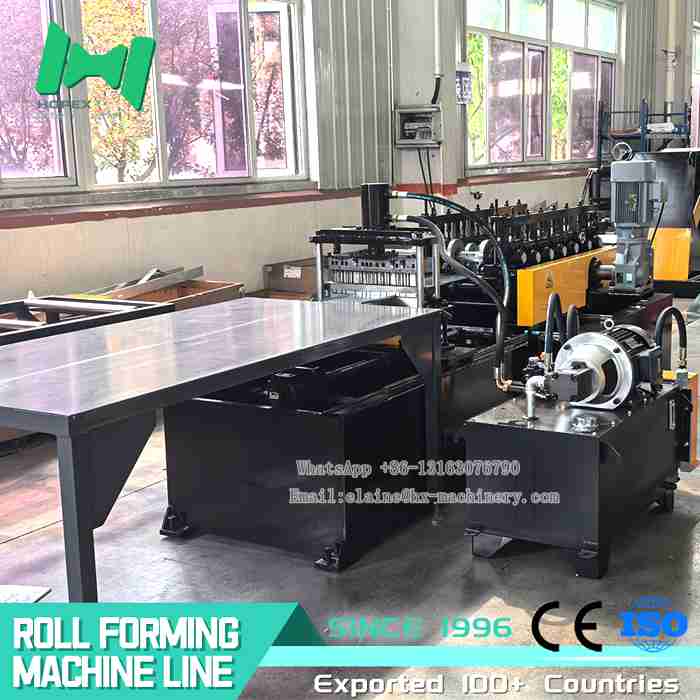

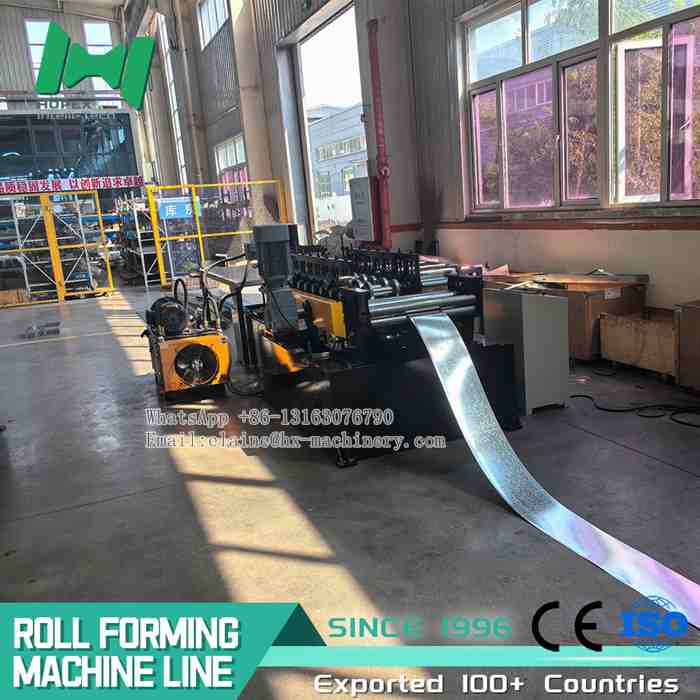

The composition of the machine
Active feeding → Leveling → Punching → Cutting → Conveying platform → Forming → Discharging
Contact us for a quote on cable tray machines！
Pictures of HOPEX Fully Automatic Cable Tray Forming Machine packaging
1.standard export package
2. Plastic film package, and water proof package in 40 ft container
Our customers
HOPEX is a professional manufacturer of cable tray forming machines, has over 20 years of experience. It has served thousands of customers worldwide and its products are exported to more than 100 countries and regions.
